2014-2018 GM Truck 5.3L L83 Gen 6 3.0L Whipple Supercharger Kit

2014-2018 GM TRUCK 5.3L L83
GEN 6 3.0L WHIPPLE SUPERCHARGER KIT

Few truck upgrades change the driving experience like a properly engineered twin-screw supercharger system. The added low-end torque, sharper throttle response, and stronger pull through the RPM range completely transform how a truck feels whether it is used for daily driving, towing, or hauling. That is exactly what the Whipple Gen 6 system delivers for GM's 5.3L L83 truck platform.

Whipple Superchargers has been at the forefront of twin-screw supercharging technology since 1987, engineering some of the most powerful and efficient forced-induction systems in the industry. That experience carries directly into the Gen 6 3.0L system for 2014-2018 GM truck applications equipped with the 5.3L L83 V8, delivering strong airflow, excellent drivability, and serious performance potential in a 50-state legal package.

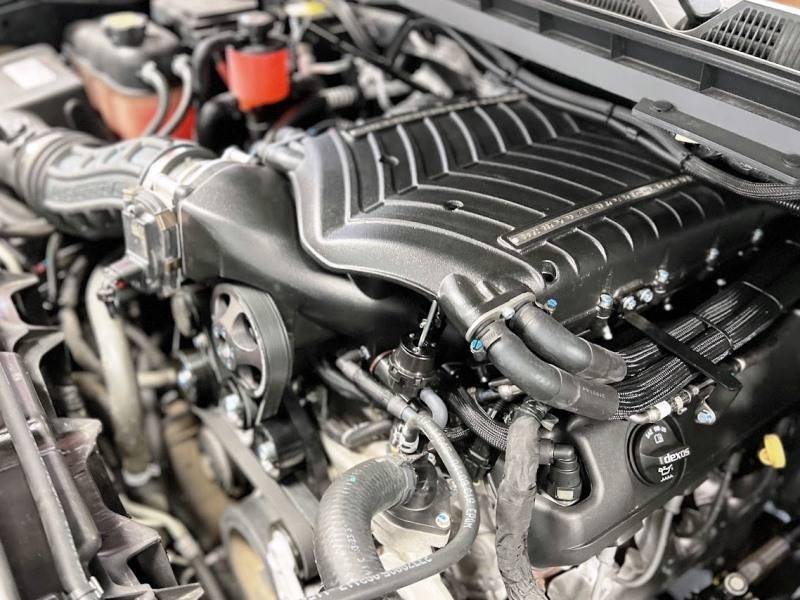

At the center of the system is Whipple's Gen 6 3.0L twin-screw supercharger, designed to support excellent airflow and immediate boost response. The oversized Crusher 112mm inlet, patented dual-pass dual-core intercooler design, and high-capacity intercooler system work together to support strong airflow, lower air charge temperatures, and broad usable torque throughout the RPM range.

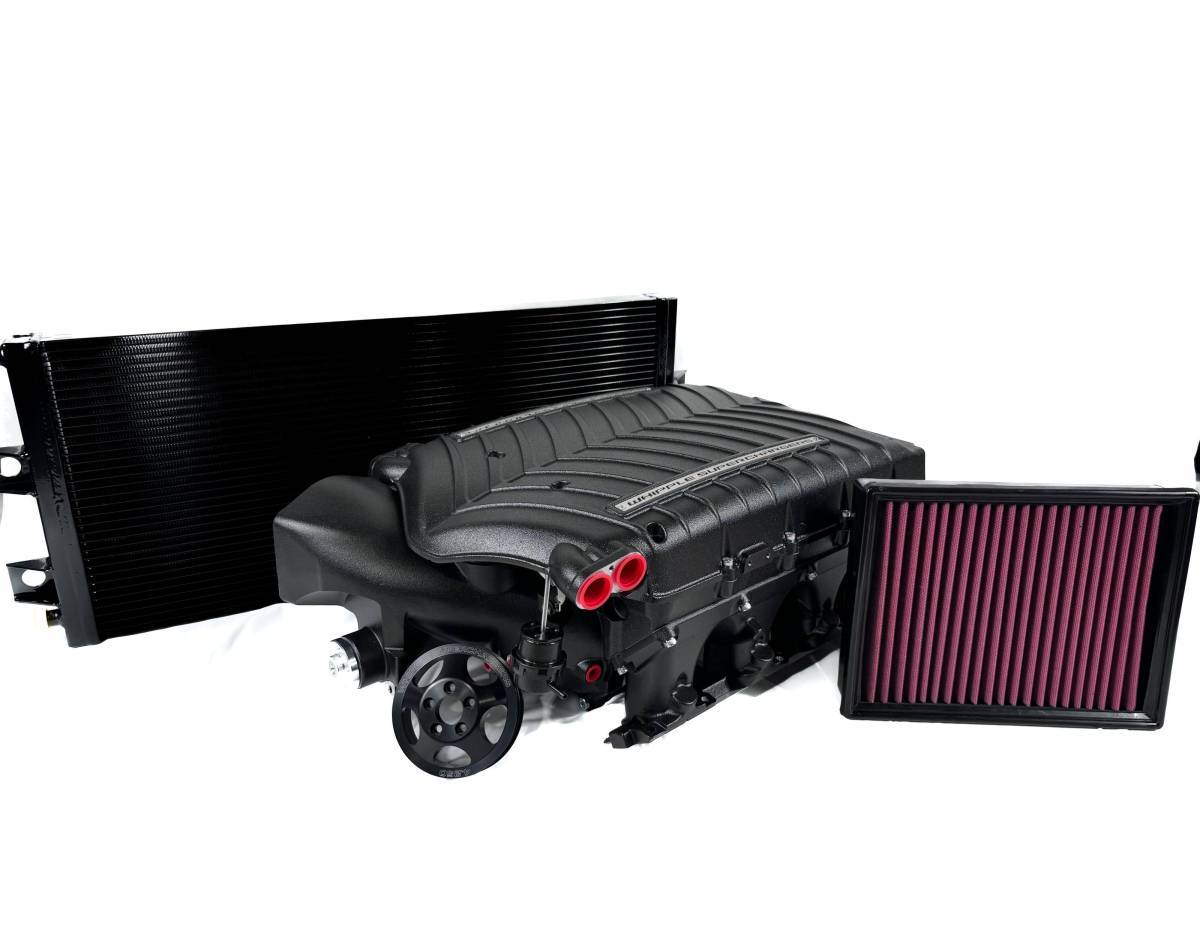

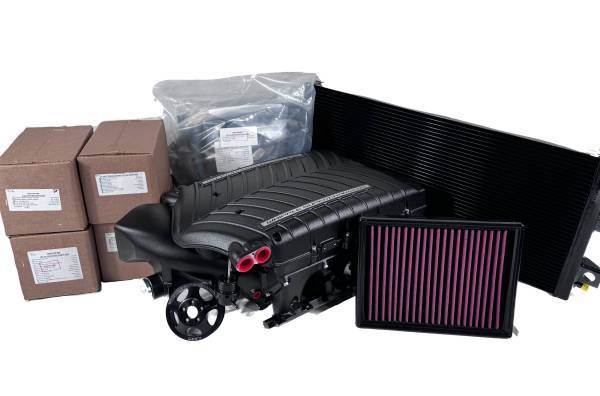

To support that performance, the package uses a high-flow intercooler pump, filler reservoir, and massive low-temp heat exchanger to improve cooling efficiency under demanding conditions. The kit also includes the hardware needed for a complete bolt-on installation, including a supplied LT4 3-bar TMAP sensor, high-flow filter element, Whipple air inlet tube, throttle body adapter for 5.3L applications, and HP Tuners RTD support for calibration.

When used as intended, the result is a serious Whipple-powered truck with stronger drivability, improved towing performance, and repeatable power in a package engineered for real-world use.

Key Features:

• 50-state legal performance upgrade (CARB EO D-231-65)

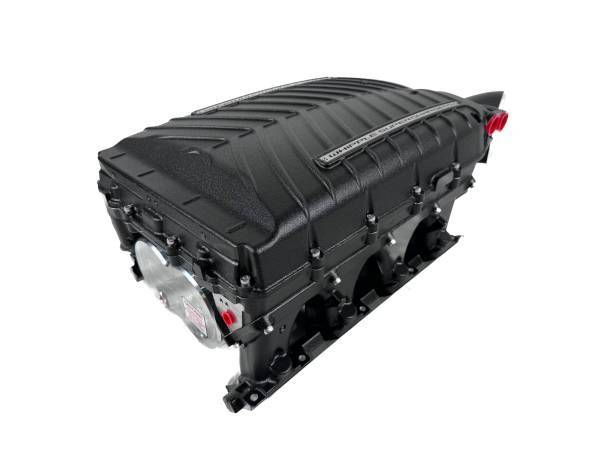

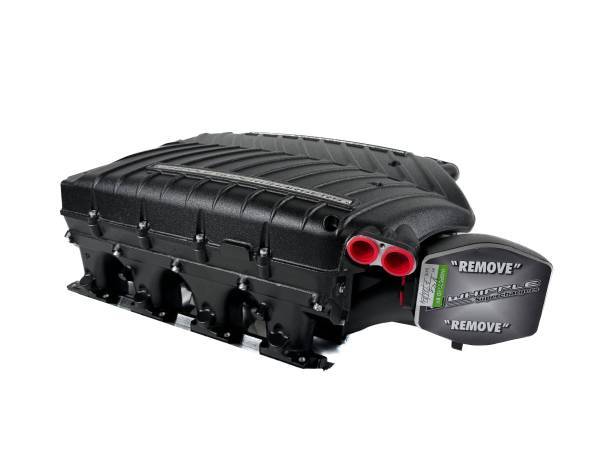

• Gen 6 3.0L Whipple twin-screw supercharger

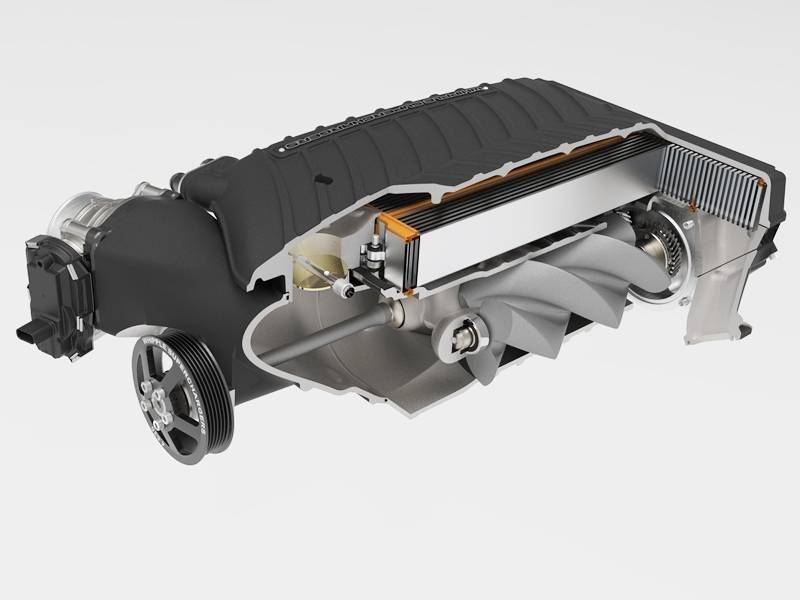

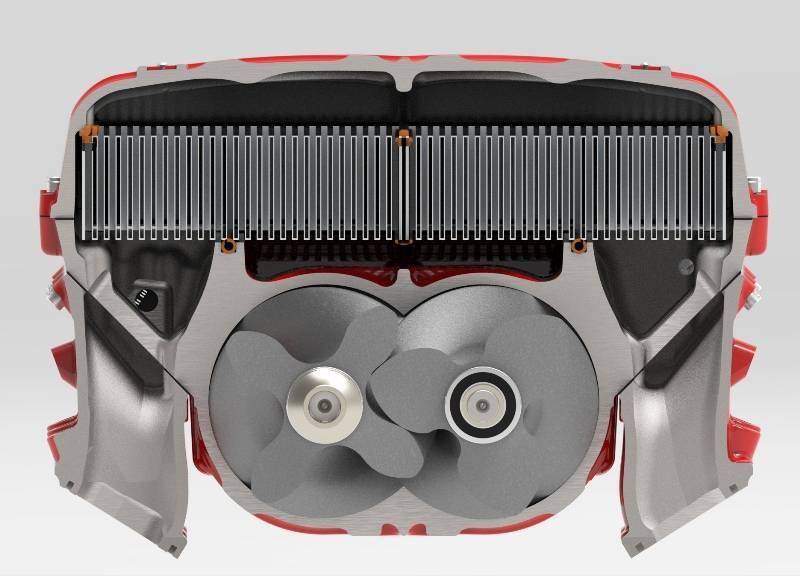

• Patented dual-pass, dual-core air-to-water intercooler system
• Oversized Crusher 112mm inlet for increased airflow and reduced rotor cavitation
• Integrated casting minimizes bolt-on pieces, adapters, leaks and flow restrictions
• Integrated Crusher™ venturi shaped inlet for maximum airflow capacity and minimal rotor cavitation
• Integrated Crusher™ 112mm round inlet outflows smaller 90 and 93mm inlets used on other Eaton-based systems
• Integrated Crusher™ 112mm round inlet supports optional 102mm throttle bodies
• Big Mouth Whipple Crusher™ plastic air inlet, or optional carbon fiber, for increased velocity and lower inlet temperatures
• Integrated design allows for an oversized intercooler core compared to smaller competing systems, helping reduce air charge temperatures and support more boost and timing on pump gas
• Massive air-to-water aluminum bar-plate intercooler offers excellent cooling capacity
• Whipple Superchargers oversized intercooled air-bypass system for strong burst-knock reduction and excellent fuel economy
• Self-contained oversized oil system for reduced oil temperatures under demanding conditions
• Zero turn inlet design reduces induction losses compared to rear inlet systems and 180-degree bends
• Discharge down design reduces pressure loss for more power at lower boost levels
• Top mount design helps maintain cooler operation than upside-down supercharger layouts
• More boost at the "hit" than other twin-screw systems
• Flat torque curve for strong acceleration and towing performance
• High-flow intercooler pump and massive heat exchanger for improved air charge temperature control
• LT4 3-bar TMAP sensor included

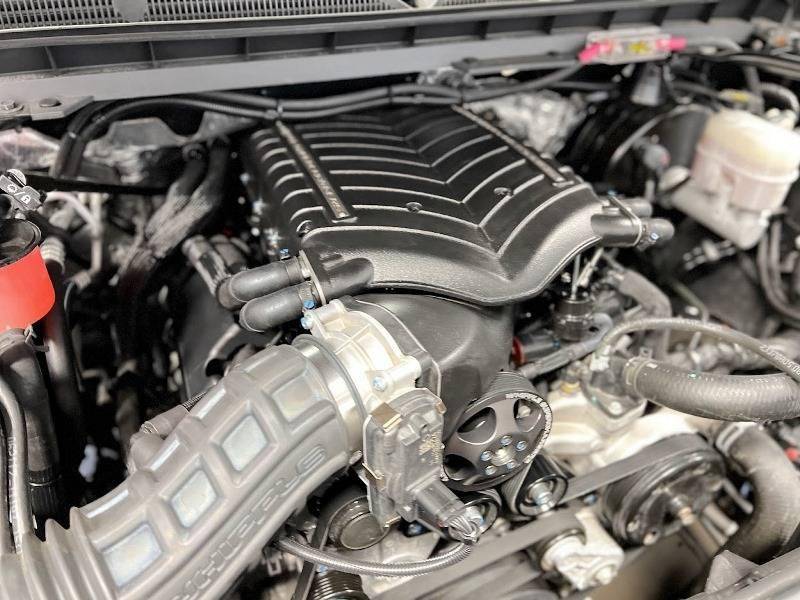

• Factory throttle body retained on 5.3L applications using supplied adapter

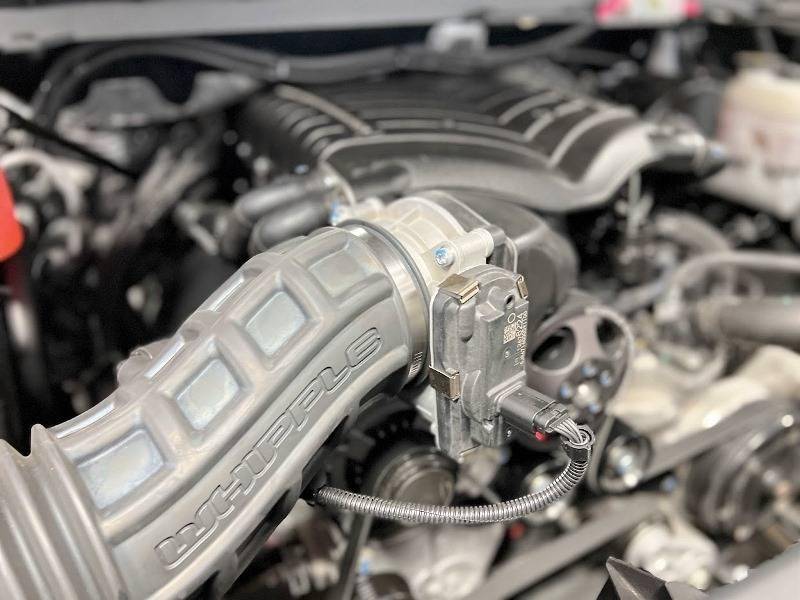

• High-flow filter element and Whipple air inlet tube included
• HP Tuners RTD flash tool and calibration support included
• Designed for stock, unmodified, well-maintained engines
• Premium fuel only, 91 octane or better
• Denso ITV22 or NGK 6510 spark plugs gapped to .032"
• Whipple SC oil fill to bottom of fill plug, 4.0 fl oz
• Designed to work with the factory air box, factory MAF, and Whipple air inlet duct
• OEM quick-connect fittings for easier installation

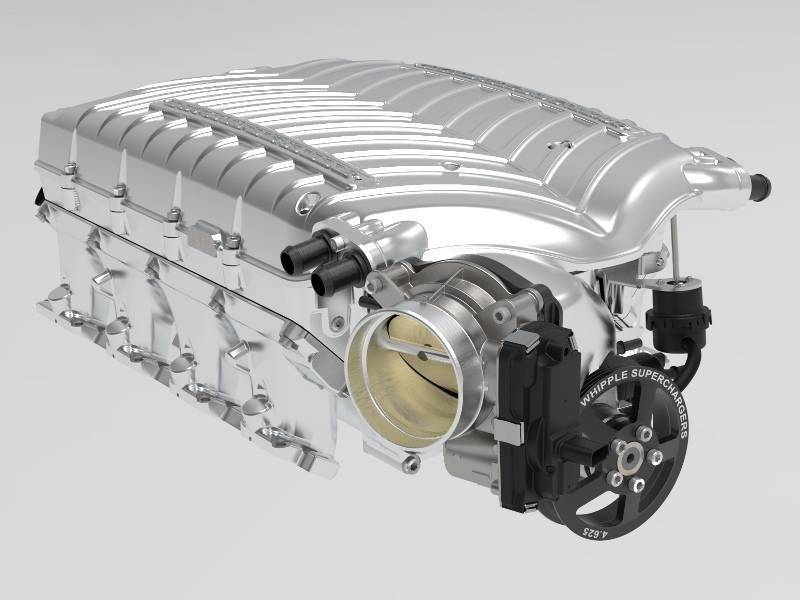

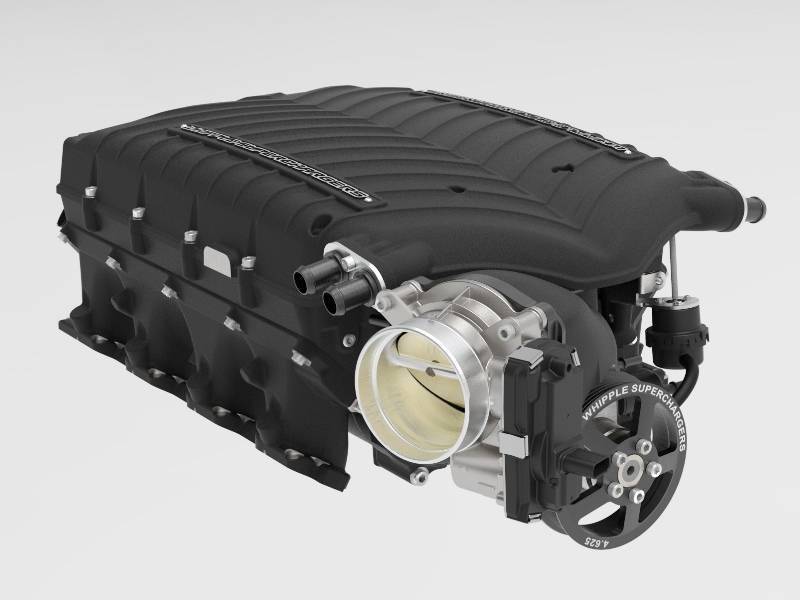

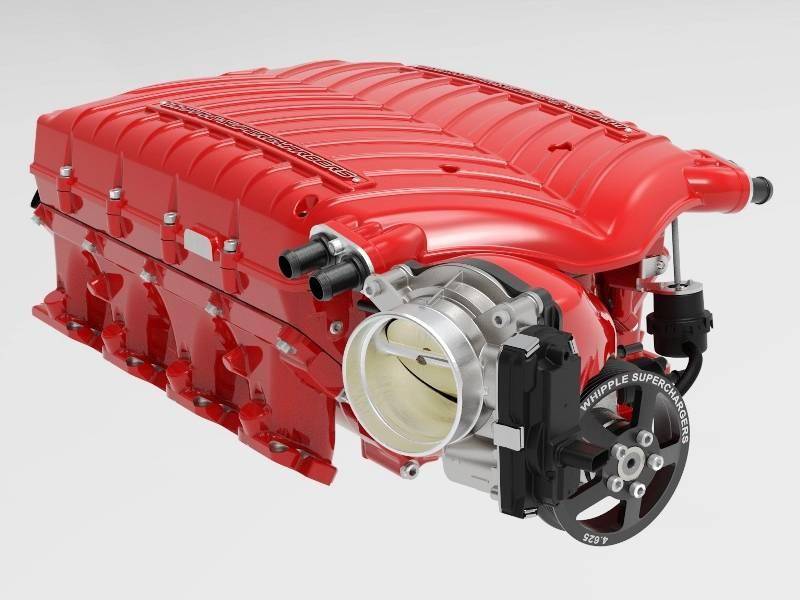

• Available in wrinkle black, polish, or custom colors
• Instant boost at the touch of the throttle

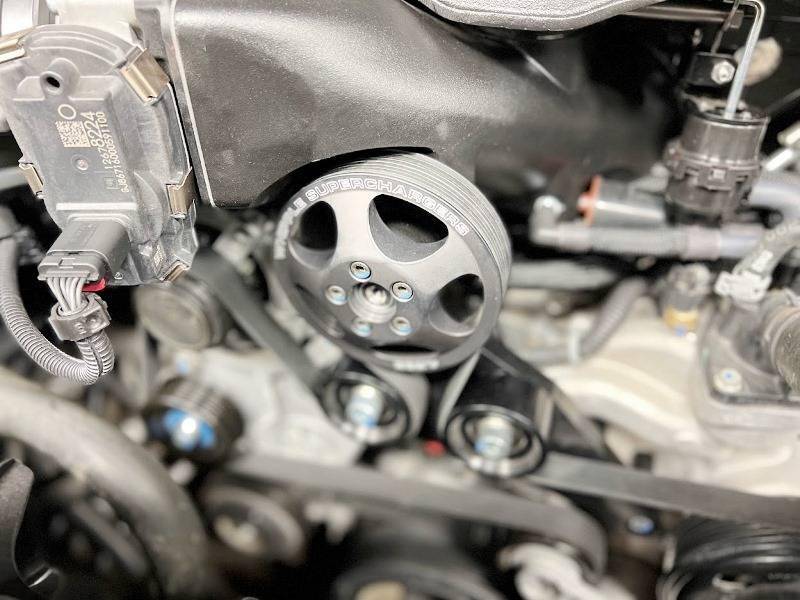

• 3 minute pulley changes

Application Notes:

Fits 2014-2018 GM truck applications only. Does not fit 2015-2020 SUV or 2019-2026 truck applications.

For 2017-2018 model years, transmission unlock service may be required for custom calibration and added performance flexibility. This is not required for proper operation and is not included with the system.

Disclaimer: Premium fuel only, 91 octane or better, is required. Power and drivability may vary based on vehicle condition, fuel quality, supporting modifications, weather, and dyno type.
