Whipple Low Profile GM Big Block Intercooler

WHIPPLE LOW PROFILE GM BIG BLOCK INTERCOOLER

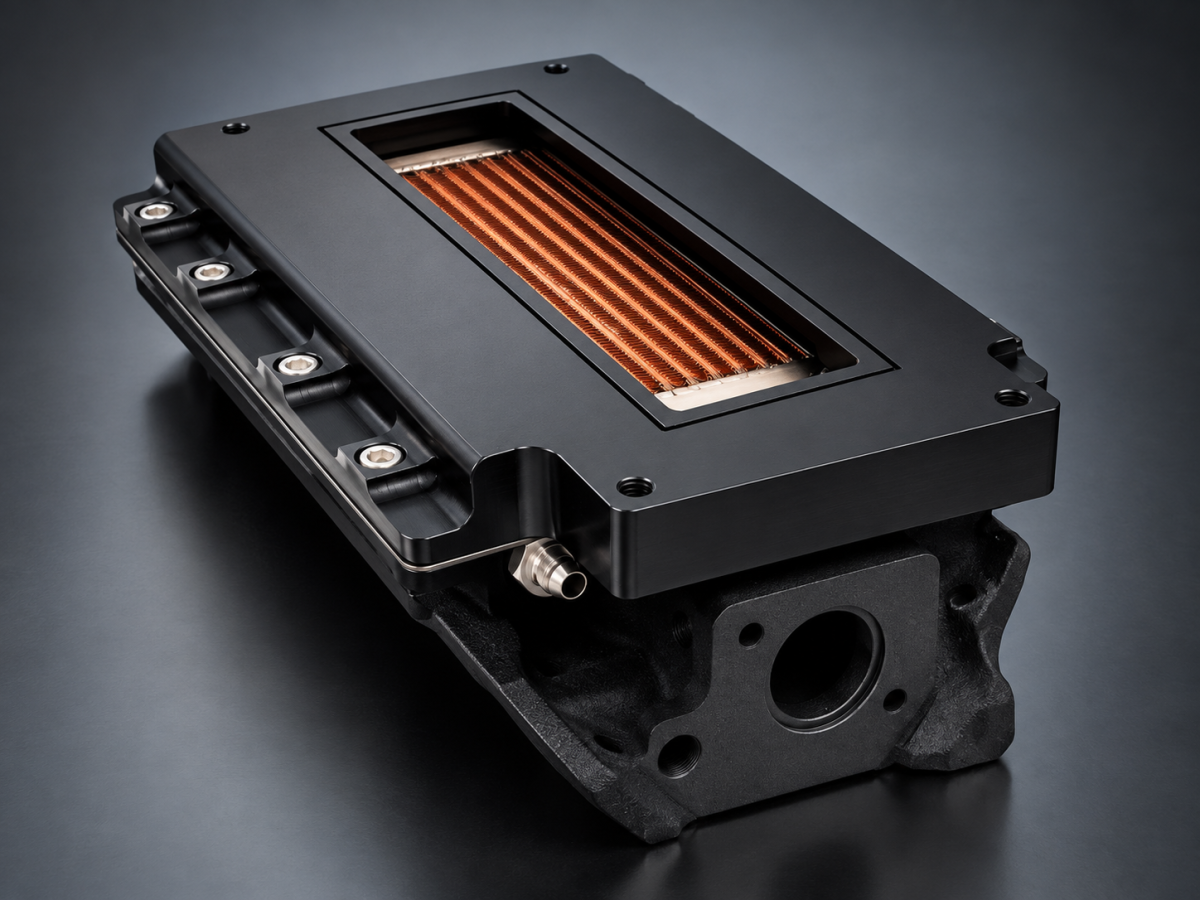

The Whipple Low Profile GM Big Block Intercooler combines Whipple's modular 671-based GM Big Block intake manifold with an integrated Whipple Cooler intercooler system. The platform provides a flexible foundation for Whipple twin-screw, Quad Rotor, roots-style, and other compatible forced-induction combinations while maintaining a compact low-profile package.

The manifold is compatible with Whipple 3.3L, 3.8L, 4.0L, 4.5L, 5.0L, 8.3L, and Quad Rotor superchargers. With the appropriate billet adapter plate, the 671-based manifold can also support 671 through 1471 roots-style superchargers from manufacturers such as B&M and Weiand.

Cast from high-strength A356-T6 aluminum, the manifold is available for both standard deck (9.8") and tall deck (10.2") GM Big Block configurations. The modular design allows the assembly to be configured around the required deck height, finish, supercharger adapter plate, intercooler material, and thermostat housing.

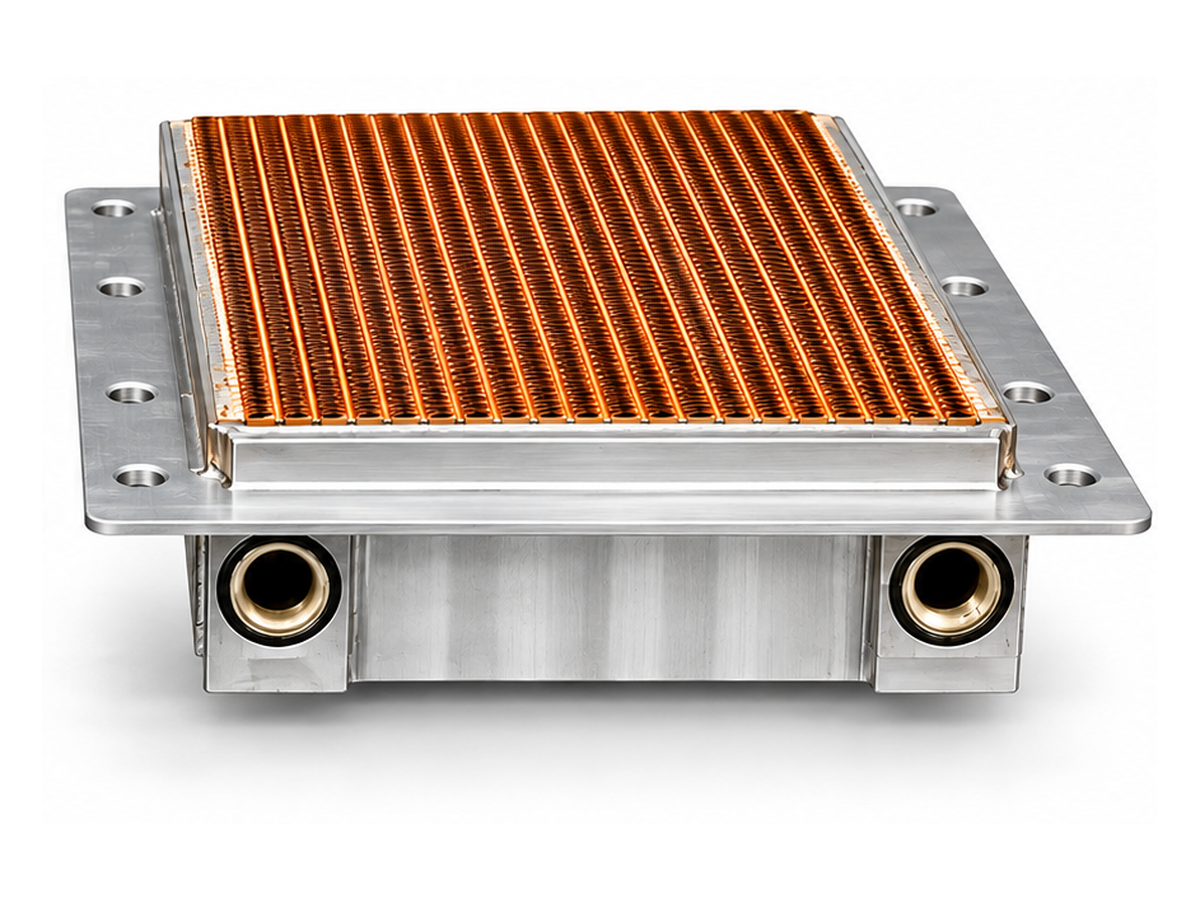

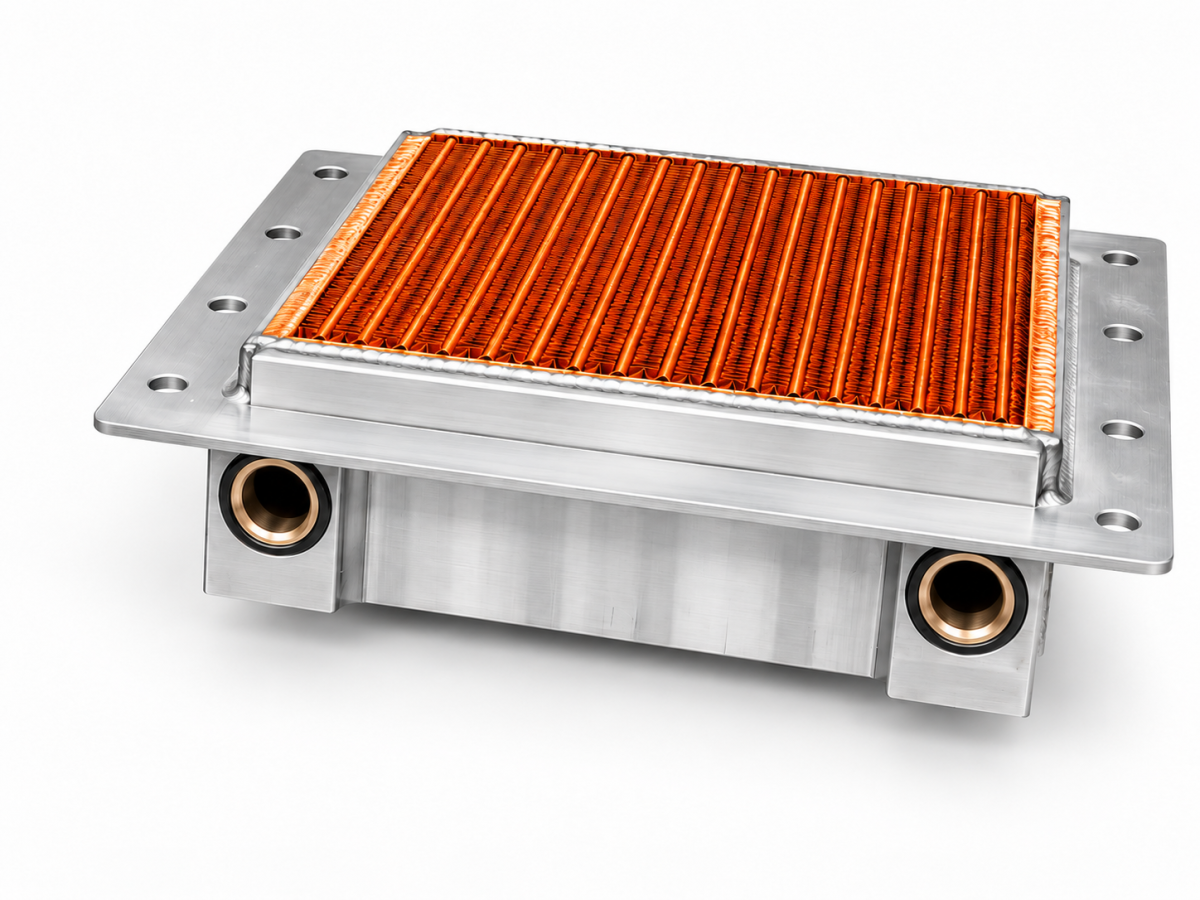

The standard Whipple Cooler configuration uses a cupronickel (CuNi) intercooler core. CuNi construction provides excellent corrosion resistance and heat-transfer capability, making it especially well suited to demanding environments including marine applications. An aluminum intercooler core is also available as a lower-cost configuration.

Multiple billet adapter plate configurations are available to support common supercharger and blower layouts. Depending on the selected configuration, the system can support 671/871 applications, 1" offset 1071 applications, B&M 250/420 applications, and Weiand 256 applications.

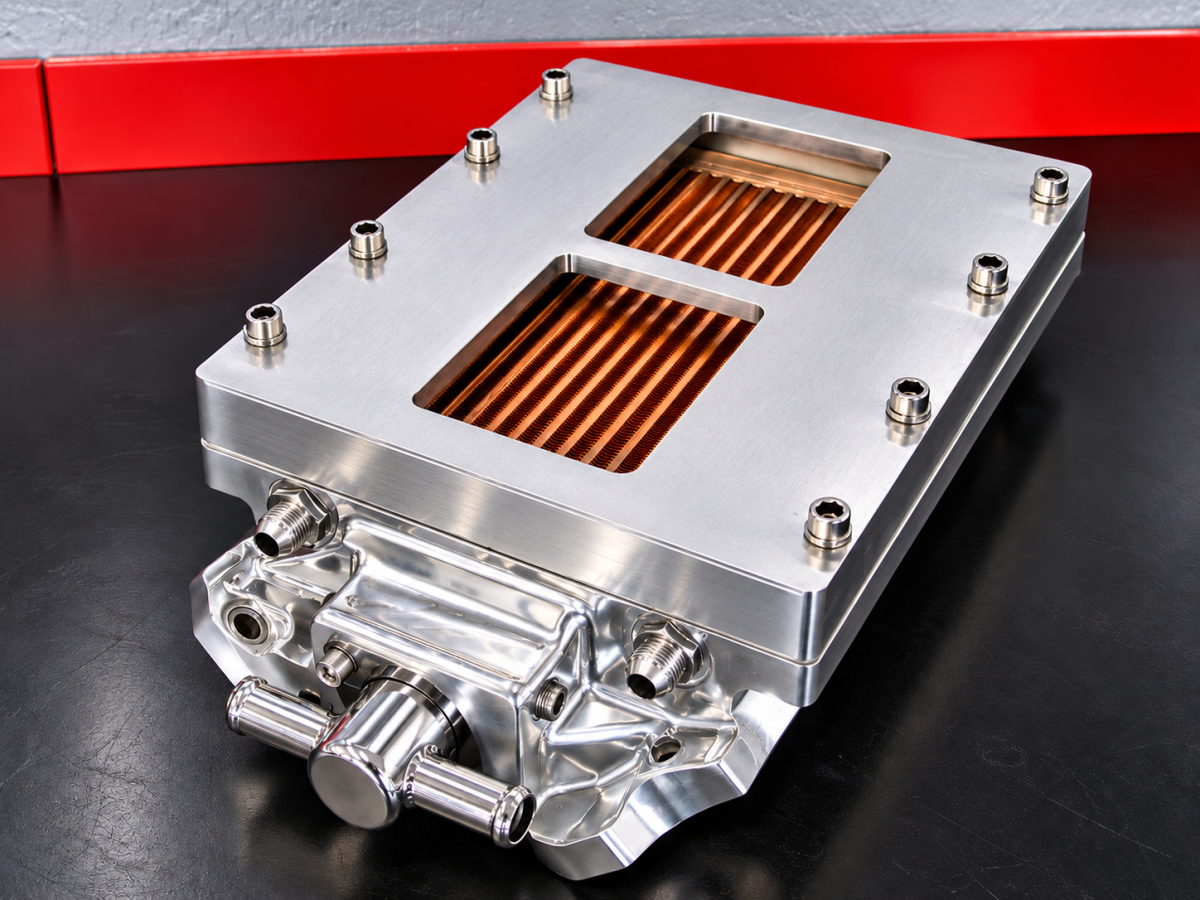

The low-profile Whipple Cooler architecture helps package the intercooler within the intake manifold while minimizing overall assembly height. Applicable billet adapter plates are machined from 6061-T6 aluminum and are designed to maintain effective airflow distribution through the supercharger and manifold assembly.

The 671-based manifold architecture can also be adapted for other forced-induction combinations, including turbocharged or centrifugal-supercharger systems, when used with the appropriate custom adapter.

For applicable fuel-injected Whipple supercharger combinations, verify distributor clearance and any required spacer or adapter components before ordering.

KEY FEATURES

• Low-profile Whipple Cooler intercooler and GM Big Block intake manifold assembly
• Compatible with Whipple 3.3L, 3.8L, 4.0L, 4.5L, 5.0L, 8.3L, and Quad Rotor superchargers
• Supports 671 through 1471 roots-style superchargers with applicable adapter plates
• Available in standard deck (9.8") and tall deck (10.2") configurations
• Cupronickel (CuNi) intercooler core standard
• Optional aluminum intercooler core configuration
• Natural, gloss black, and polished finish options
• Multiple billet supercharger adapter plate configurations available
• Optional thermostat housing configurations available for compatible plumbing layouts
• 671-based architecture can be adapted for additional compatible forced-induction applications

Application Note: Verify engine deck height, supercharger type, adapter plate, intercooler material, thermostat housing, distributor clearance, available installation space, and complete installation requirements before ordering.
