2024-2025 Ford F-150 5.0L Gen 6 Stage 2 Whipple Competition Supercharger Kit

Supercharger Kit

WK-2317-STG2-30C
  • Fits 2024–2025 Ford F-150 5.0L Coyote V8
  • Stage 2 Competition Kit – Up to 805 HP / 685 TQ*
  • Gen 6 3.0L Whipple Twin-Screw Supercharger
  • 132mm Billet Roval Throttle Body + Billet Fuel Rails
  • Dual-Pass, Dual-Core Intercooler + Massive Heat Exchanger
  • Plug-and-Play Wiring, Billet Idler System, and Mounting Hardware
  • For off-road/racing use only – No injectors, tuning device, or CARB EO

Installation Instructions:

F-150 5.0L Supercharger Installation Manual

Pricing: $9,799.99

Customize Your Item

- -
 * required
- -
 * required
 * required
Qty:
Free Ground Shipping

Description

WHIPPLE GEN 6 3.0L STAGE 2 COMPETITION SUPERCHARGER SYSTEM FOR 2024–2025 FORD F-150 5.0L

Unlock up to 805 HP and 685 TQ* with Whipple’s Stage 2 Competition Supercharger Kit, designed for the 2024–2025 5.0L Coyote-powered F-150. Featuring the latest Gen 6 3.0L twin-screw technology, oversized intercooler system, and billet components, this kit delivers maximum airflow and cooling capacity for serious off-road and racing applications.

Engineered for the 2024–2025 Platform: The updated Gen 6 design is purpose-built to fit the latest F-150 engine bay. The inverted supercharger nests between the heads for a factory-style fit under the stock hood — minimal modifications required. The Stage 2 configuration adds Whipple’s high-flow 132mm billet Roval throttle body for enhanced airflow and power potential.

Unrivaled Cooling Technology: Whipple’s patented dual-pass, dual-core intercooler system forces air through each core twice, delivering unmatched thermal efficiency. Paired with the industry’s largest dual-pass heat exchanger and high-flow pump, intake temps remain consistent even under extreme load.

Included in the Kit:

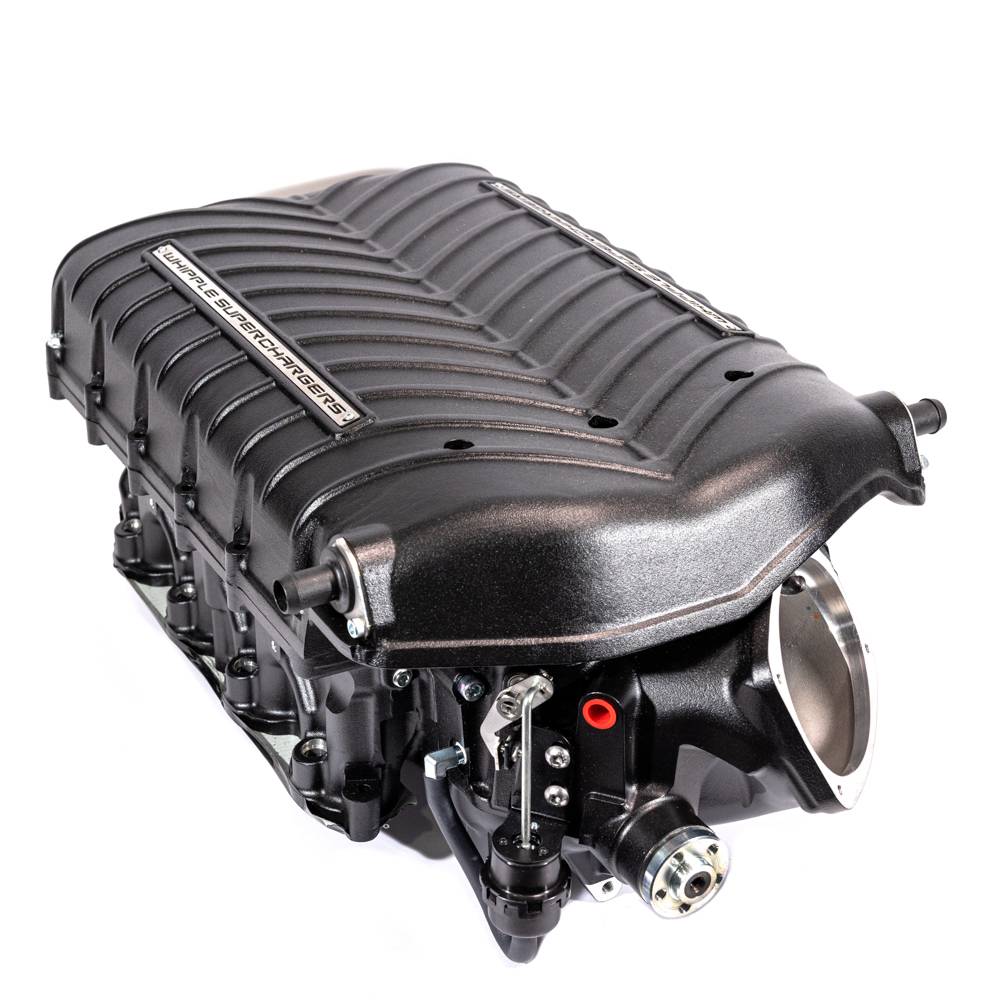

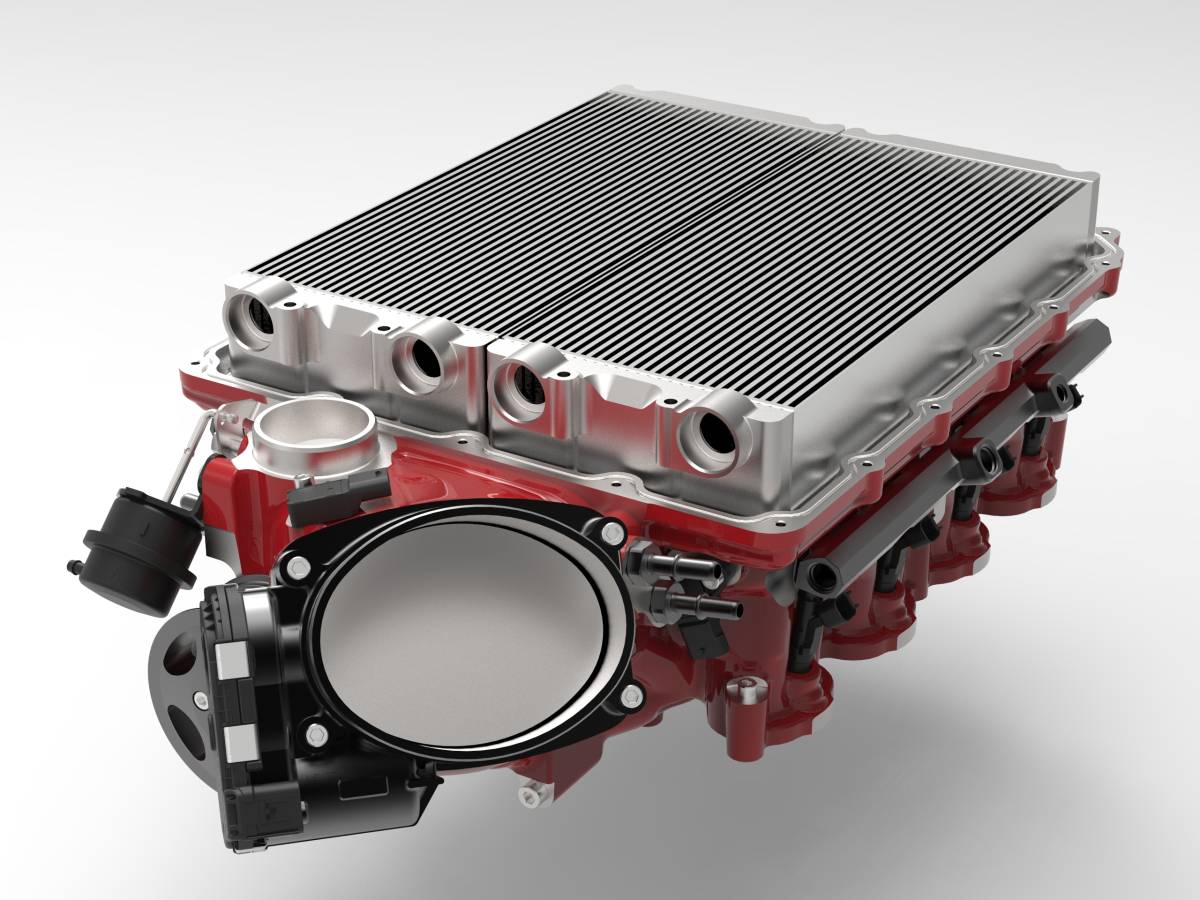

  • Gen 6 3.0L Whipple Twin-Screw Supercharger

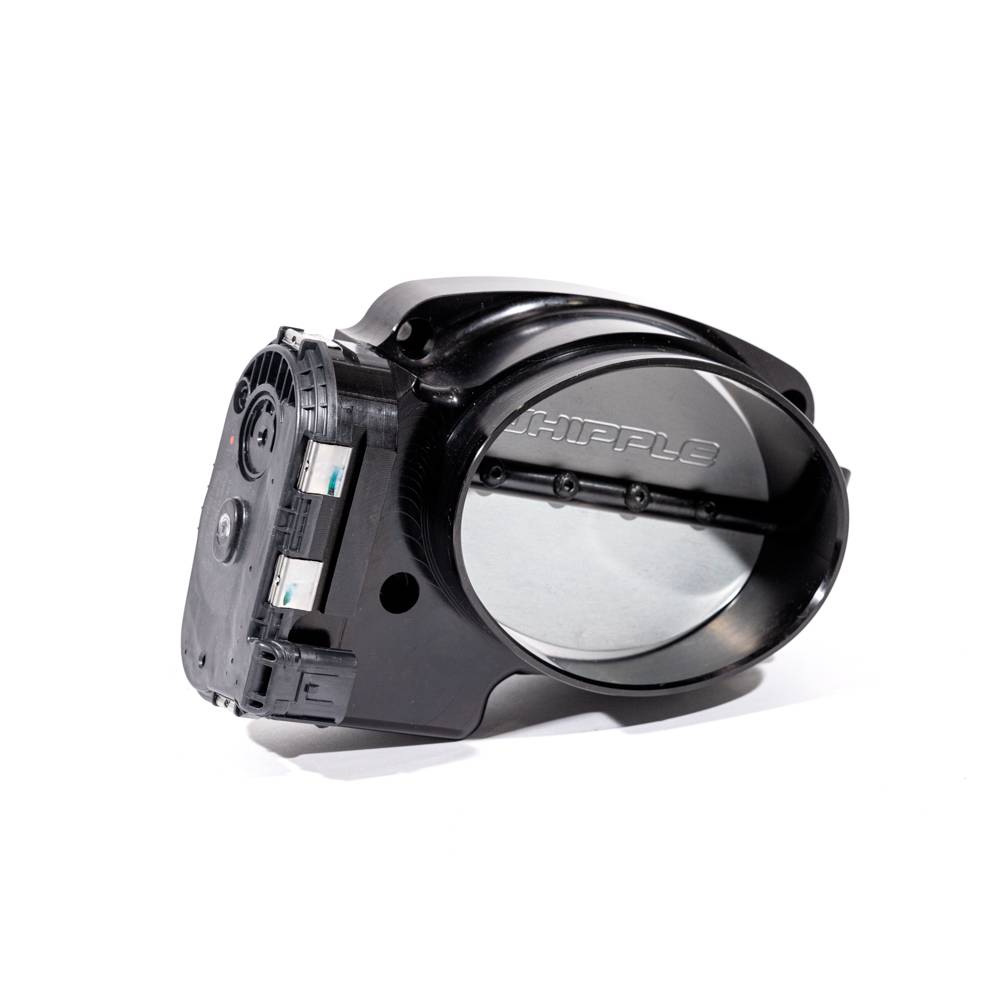

  • 132mm Billet Roval Throttle Body

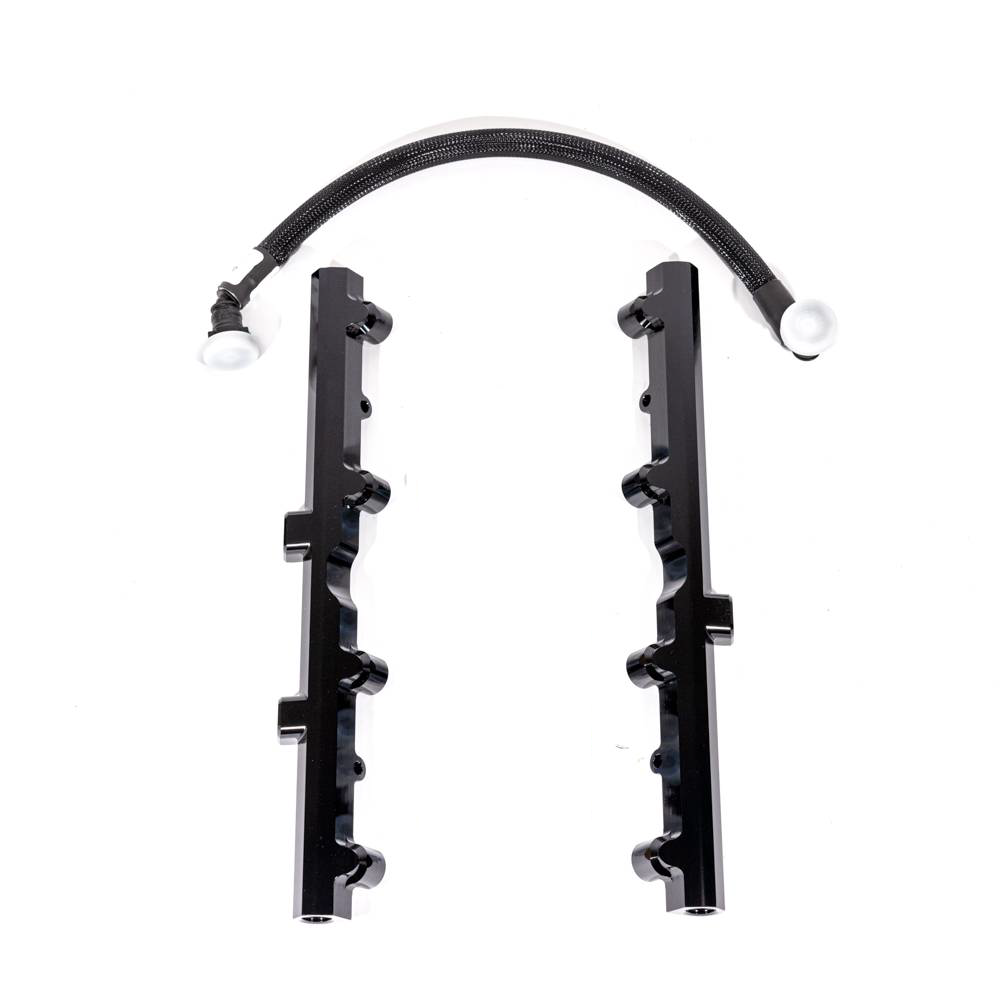

  • Billet Fuel Rails
  • Built-in Air-to-Water Intercooler System

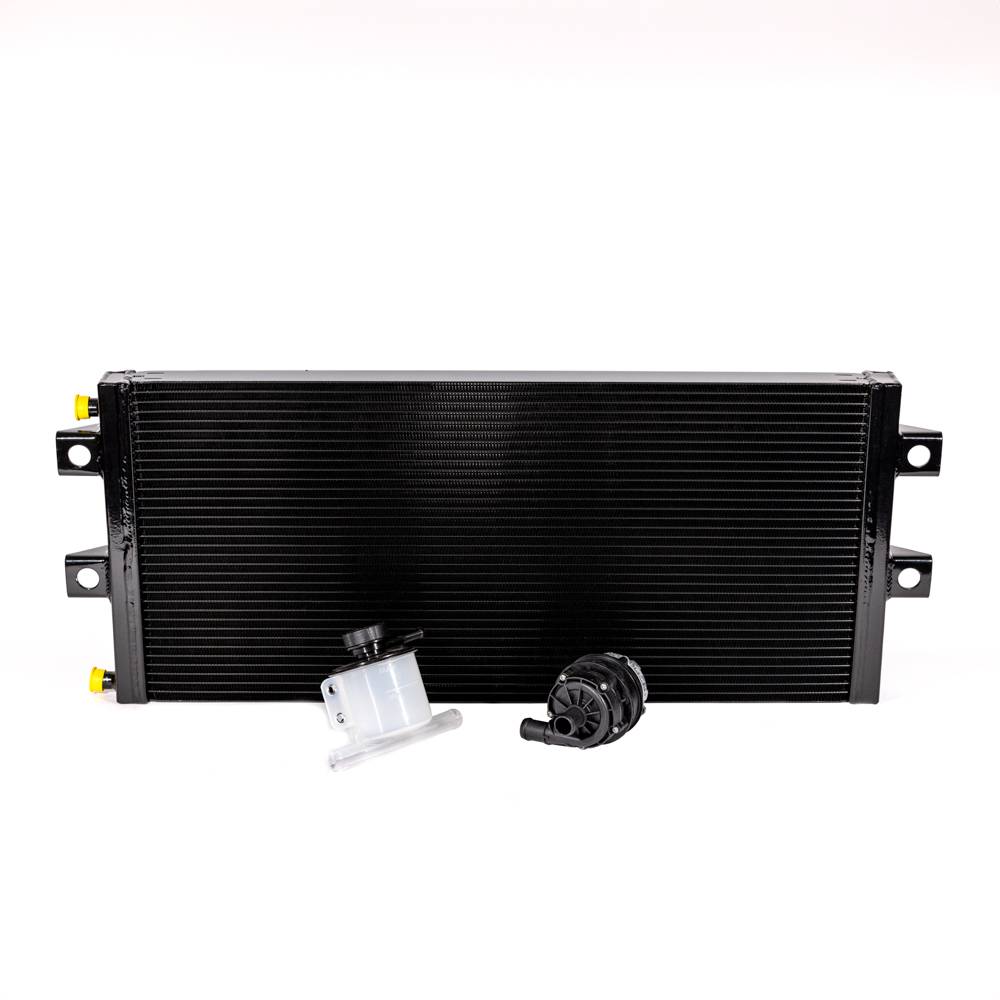

  • Oversized Dual-Pass Heat Exchanger + High-Flow Intercooler Pump

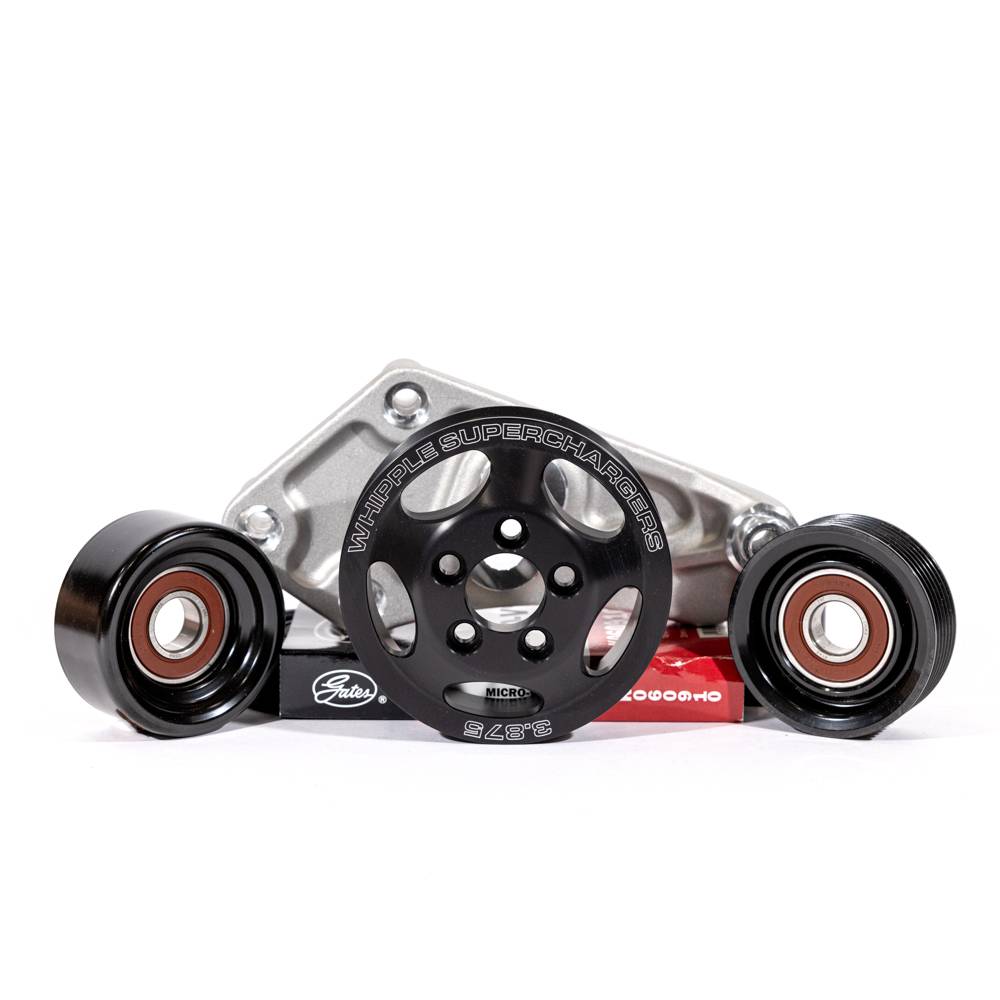

  • Plug-and-Play Wiring, Billet Idler System, and Mounting Hardware

Exclusive Features:

  • Competition-only system – Not CARB certified, not 50-state legal

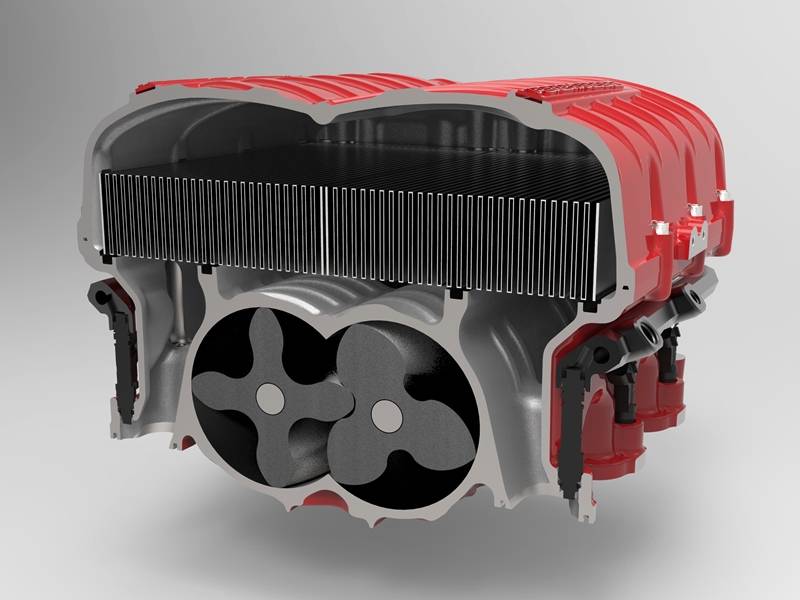

  • Patented dual-core intercoolers – each used twice for superior cooling

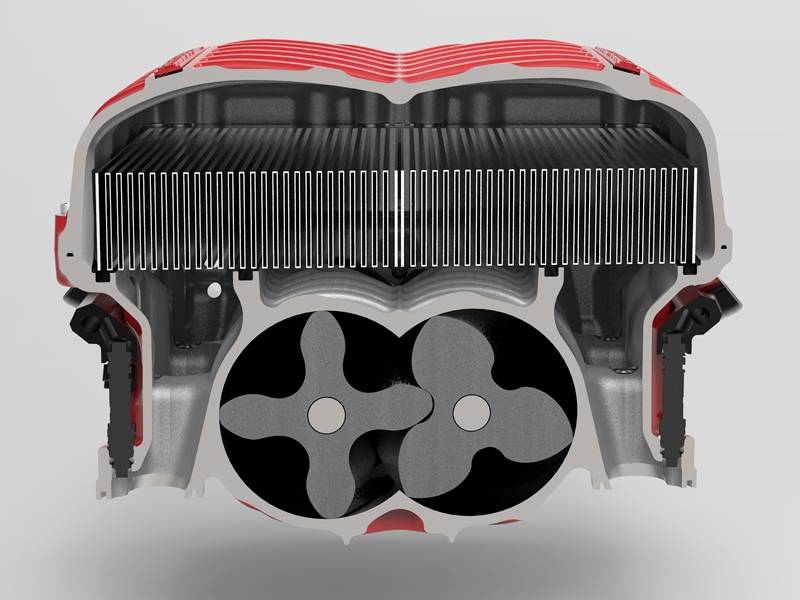

  • Whipple 3x4 rotor profile for increased RPM capacity and airflow

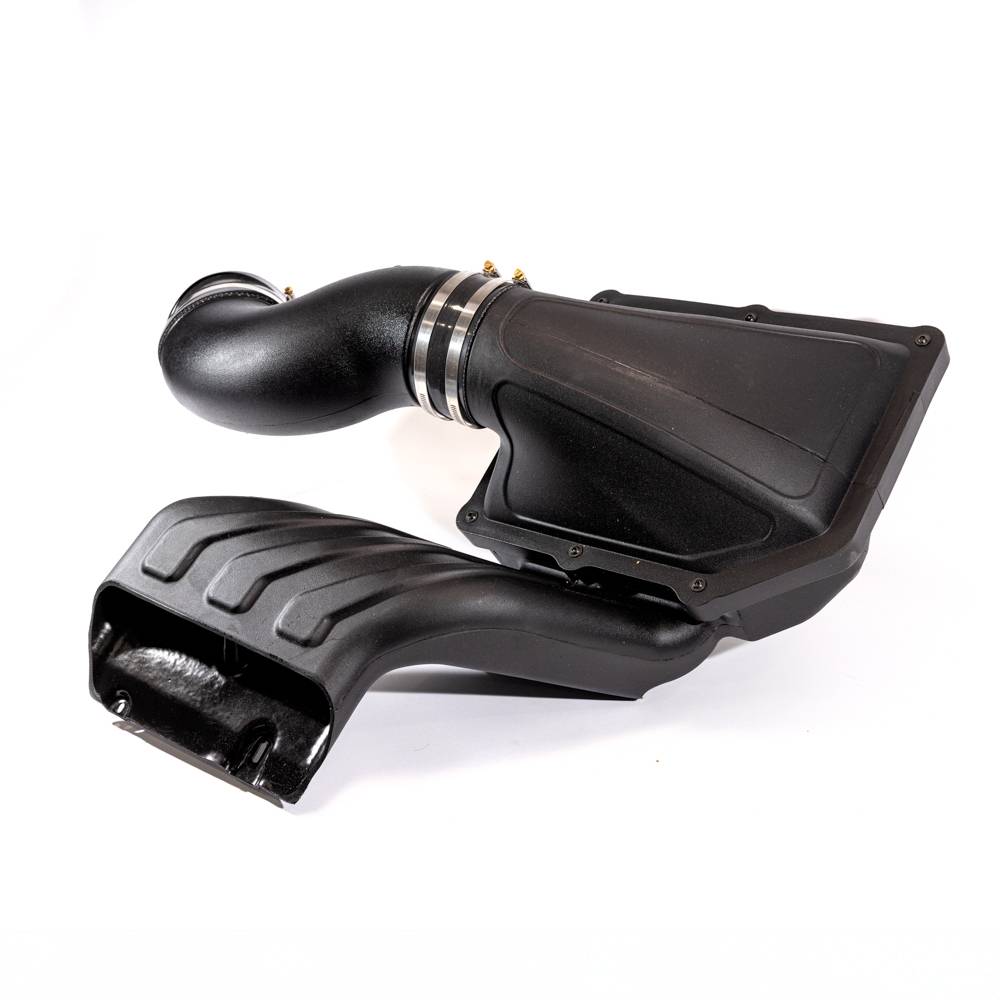

  • Oversized 150mm Crusher™ inlet for maximum air volume

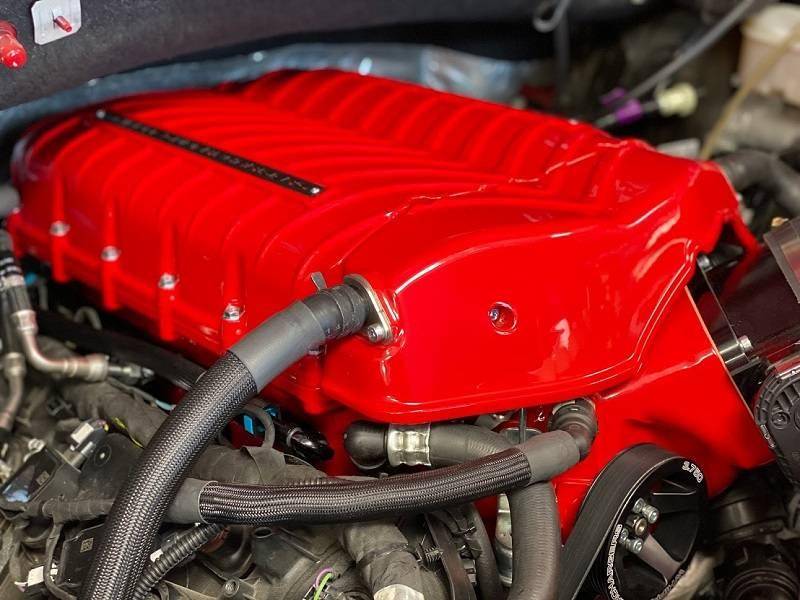

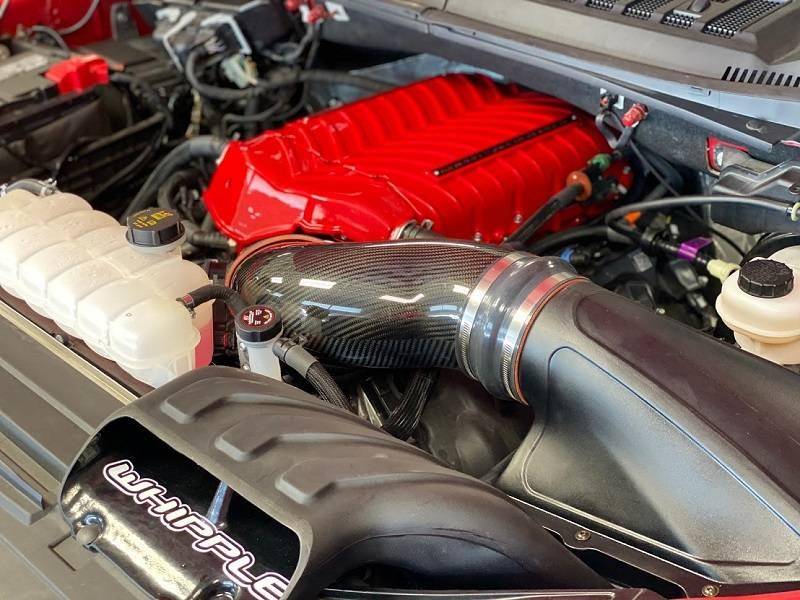

  • Fully sealed, inverted design for factory-like appearance and fitment
  • Instant boost at throttle tip-in with a flat torque curve
  • Quick-change pulleys and easy belt servicing
  • OEM quick-connect fittings and plug-and-play sensors
  • Available in black, polished, Ford textured blue, or custom finishes

*Horsepower and torque figures are based on Whipple’s Stage 2 complete system with injectors and calibration. Actual output will vary depending on custom tuning, fuel, and supporting modifications.

Important Notice: This competition supercharger system does not include injectors, tuning device, or PCM calibration. It is intended for off-road and racing use only. Not legal for sale or use on pollution-controlled motor vehicles.


About Whipple Superchargers

Since 1987, Whipple Superchargers™ has led the industry in twin-screw supercharging technology. As the first to introduce positive displacement superchargers to fuel-injected platforms, we’ve built a reputation for bolt-on horsepower, OEM-caliber reliability, and industry-best thermal efficiency. All systems are proudly designed, tested, and built in the USA at our Fresno, California headquarters.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping
