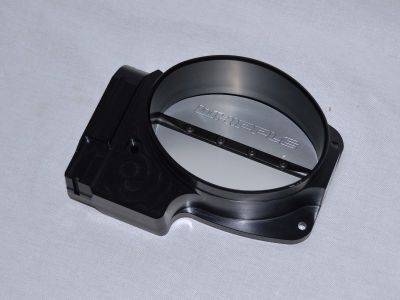

2011-2014 Ford Mustang and F-150 5.0L - Whipple Billet 132mm Elliptical Electronic Throttle Body (2000 CFM)

WHIPPLE BILLET 132MM ELLIPTICAL ELECTRONIC THROTTLE BODY (2000 CFM)

Whipple offers a billet-machined 132mm elliptical electronic throttle body designed for 2011-2014 Ford Mustang and F-150 5.0L applications using Whipple supercharger systems. This throttle body is rated at 2000 CFM of airflow and is engineered to bolt directly to the Whipple supercharger inlet housing.

The elliptical blade profile allows for increased airflow within a compact inlet shape, making it well suited for Whipple supercharger inlet packaging. The throttle body reuses the factory electronic throttle motor and is pre-flowed and set to support repeatable idle characteristics prior to installation.

KEY FEATURES:

• 132mm billet elliptical throttle body
• Rated at 2000 CFM airflow capacity
• Electronic throttle operation using factory motor
• Designed to bolt directly to Whipple supercharger inlet housings
• Pre-flowed and set for repeatable idle characteristics

NOTE: These throttle bodies require special or custom tuning. If replacing a factory 80mm throttle body on a 2011-2014 Mustang or F-150, the kit version is required to provide the correct plastic air inlet tube and silicone hose.
