2024-2025 Ford F150 5.0L Gen 6 Stage 2 Whipple Competition Supercharger Kit With Power Onboard

Supercharger Kit

WK-2317-STG2-30DC
  • Fits 2024–2025 Ford F-150 5.0L Coyote V8
  • Stage 2 Competition Kit – Up to 805 HP / 685 TQ*

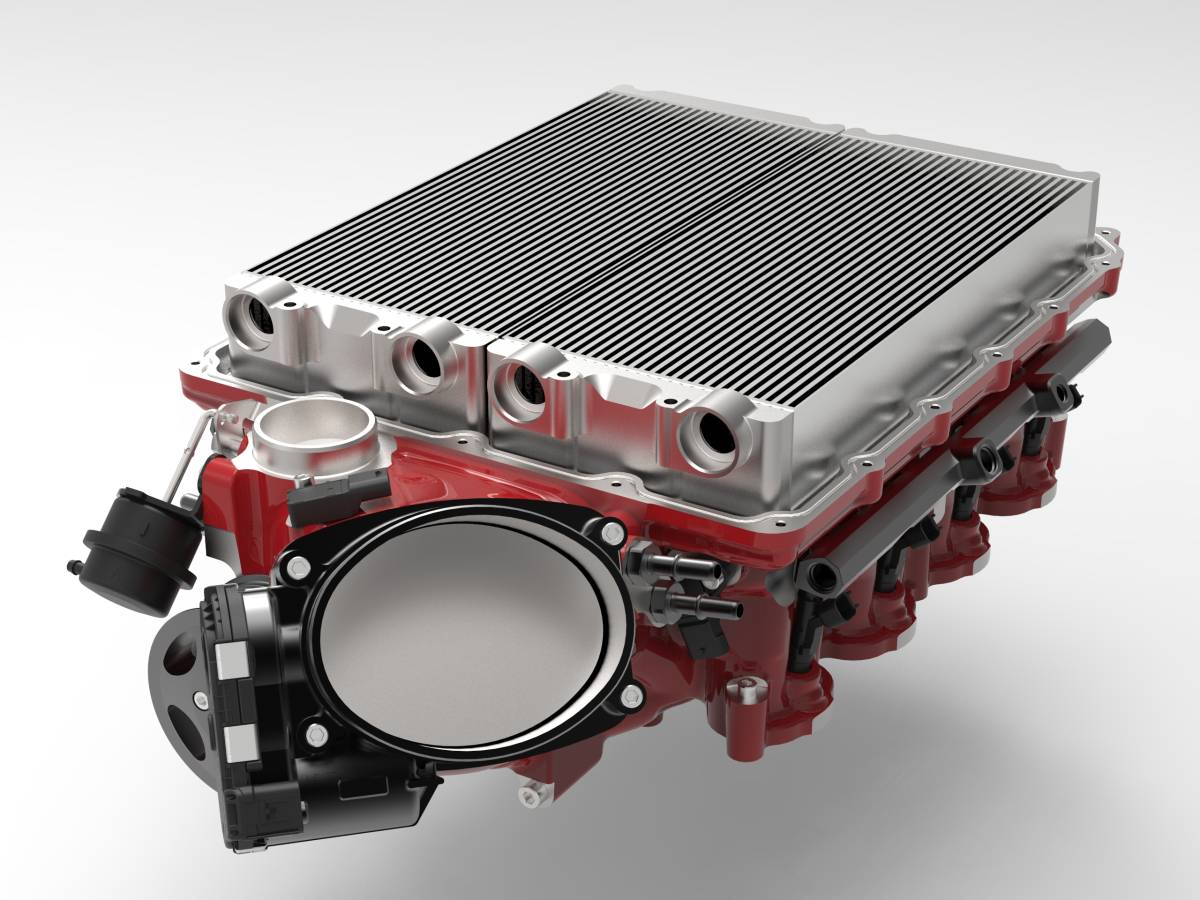

  • Gen 6 3.0L Whipple Twin-Screw Supercharger
  • 132mm Billet Roval Throttle Body + Billet Fuel Rails
  • Patented Dual-Pass, Dual-Core Intercooler for superior cooling
  • Compatible with Ford’s dual alternator (Power Onboard) configuration
  • For racing/off-road use only – No injectors, tuning device, or CARB EO

Installation Instructions:

F-150 5.0L Supercharger Installation Manual

Pricing: $10,099.99

Customize Your Item

- -
 * required
- -
 * required
 * required
Qty:
Free Ground Shipping

Description

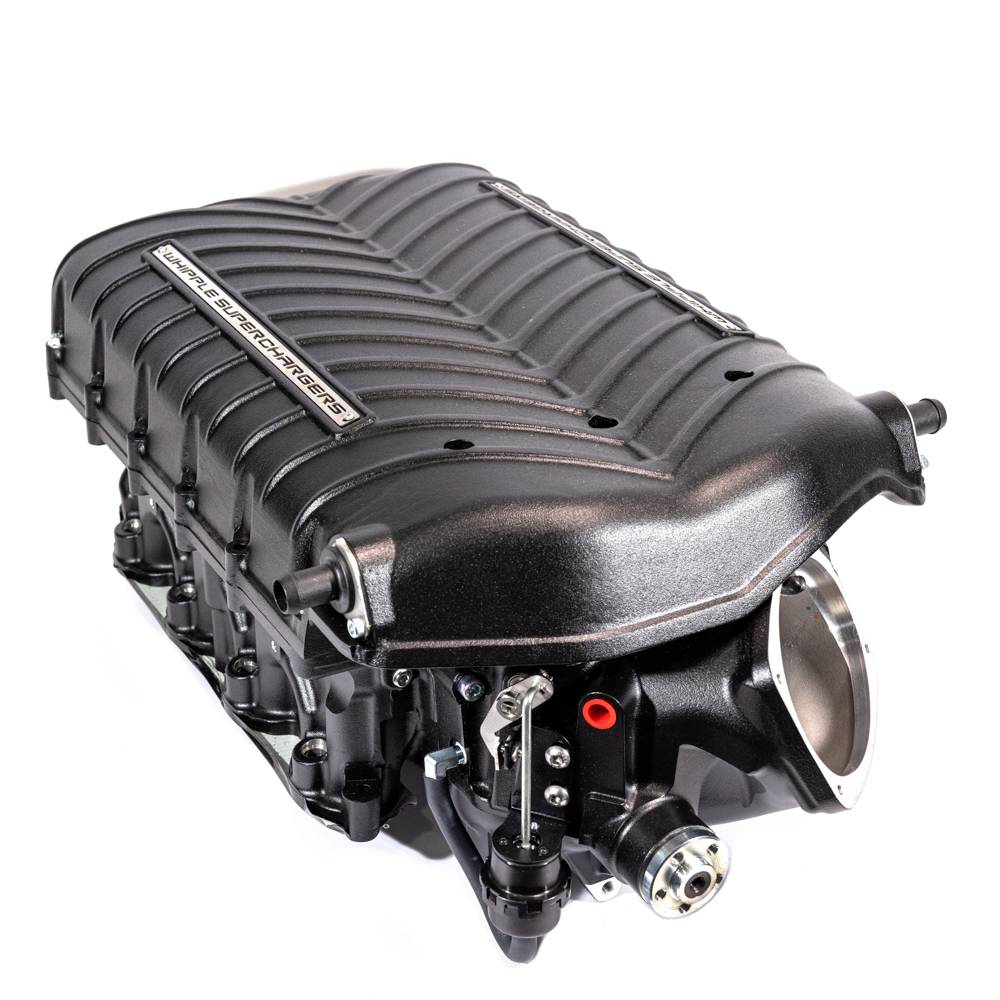

WHIPPLE GEN 6 3.0L STAGE 2 COMPETITION SUPERCHARGER SYSTEM FOR 2024–2025 FORD F-150 5.0L – POWER ONBOARD

Experience up to 805 HP and 685 TQ* with Whipple’s Stage 2 Competition Supercharger Kit, engineered specifically for the 2024–2025 5.0L Coyote F-150 equipped with Ford’s dual alternator (Power Onboard) system. This uncompromised race package features the advanced Gen 6 3.0L twin-screw supercharger, high-flow billet throttle body, and Whipple’s patented intercooler design for unmatched airflow and cooling performance.

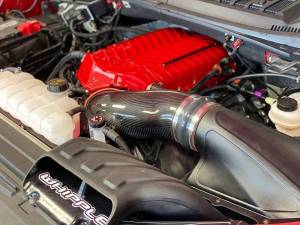

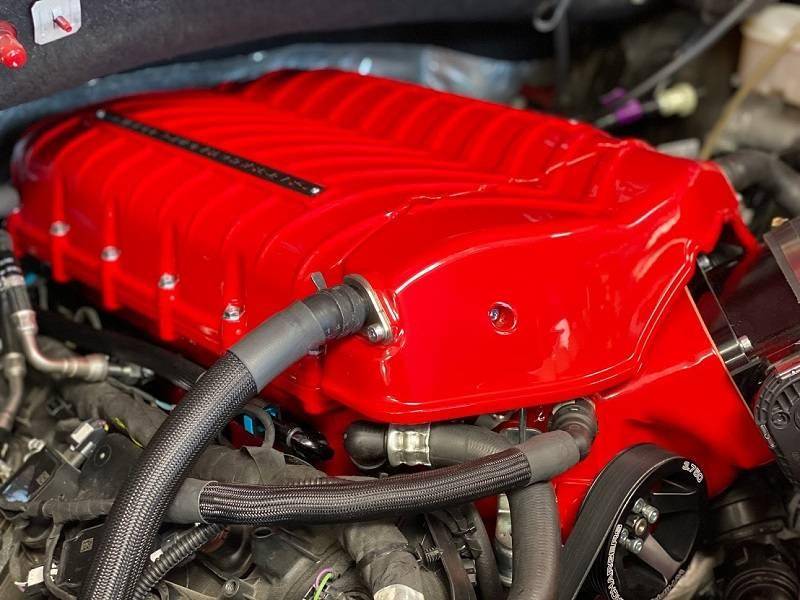

Engineered for Power Onboard Applications: Whipple designed this system to integrate with Ford’s dual alternator setup, delivering factory-like fitment while maximizing performance. The inverted supercharger nests cleanly in the engine valley under the stock hood, with minimal modifications required.

Unmatched Cooling Technology: The patented dual-pass, dual-core intercooler forces air through each core twice, dramatically increasing thermal efficiency. Combined with the oversized dual-pass heat exchanger and high-flow intercooler pump, the system maintains consistent intake temps even under demanding race conditions.

Included in the Kit:

  • Gen 6 3.0L Whipple Twin-Screw Supercharger

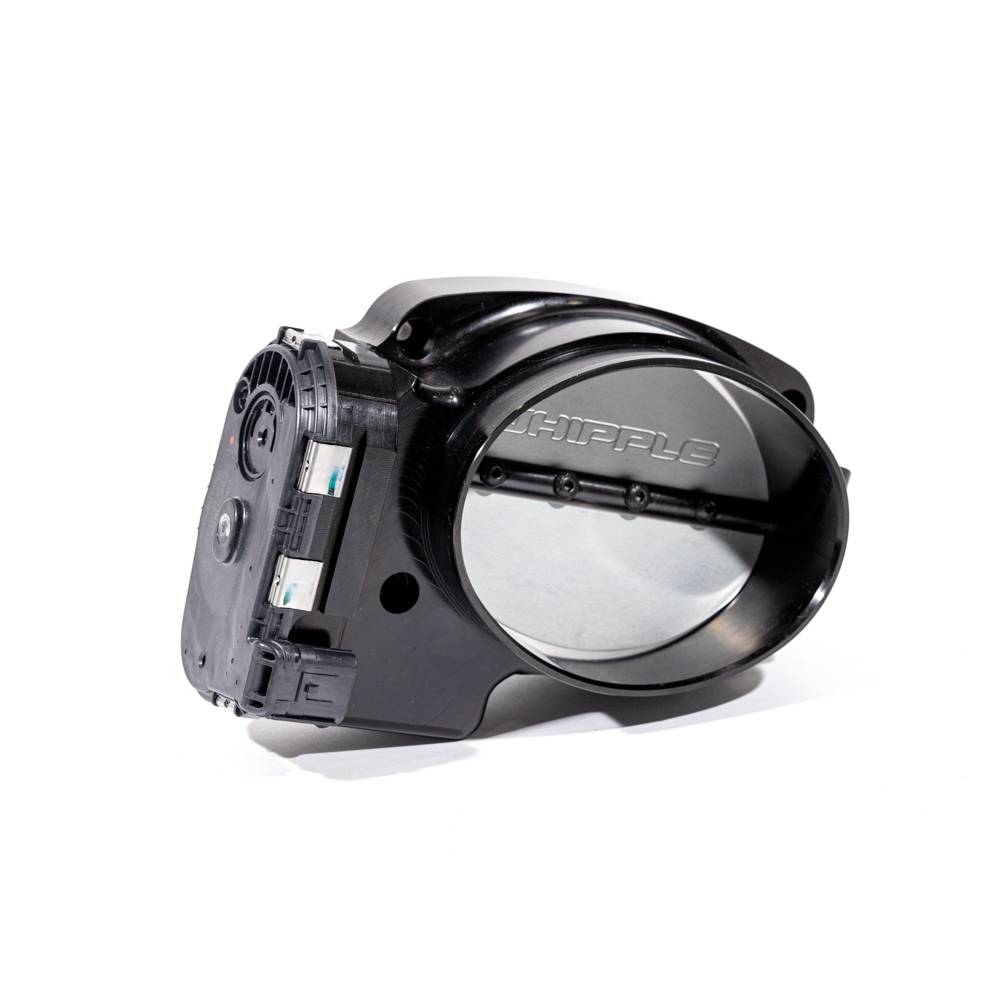

  • 132mm Billet Roval Throttle Body

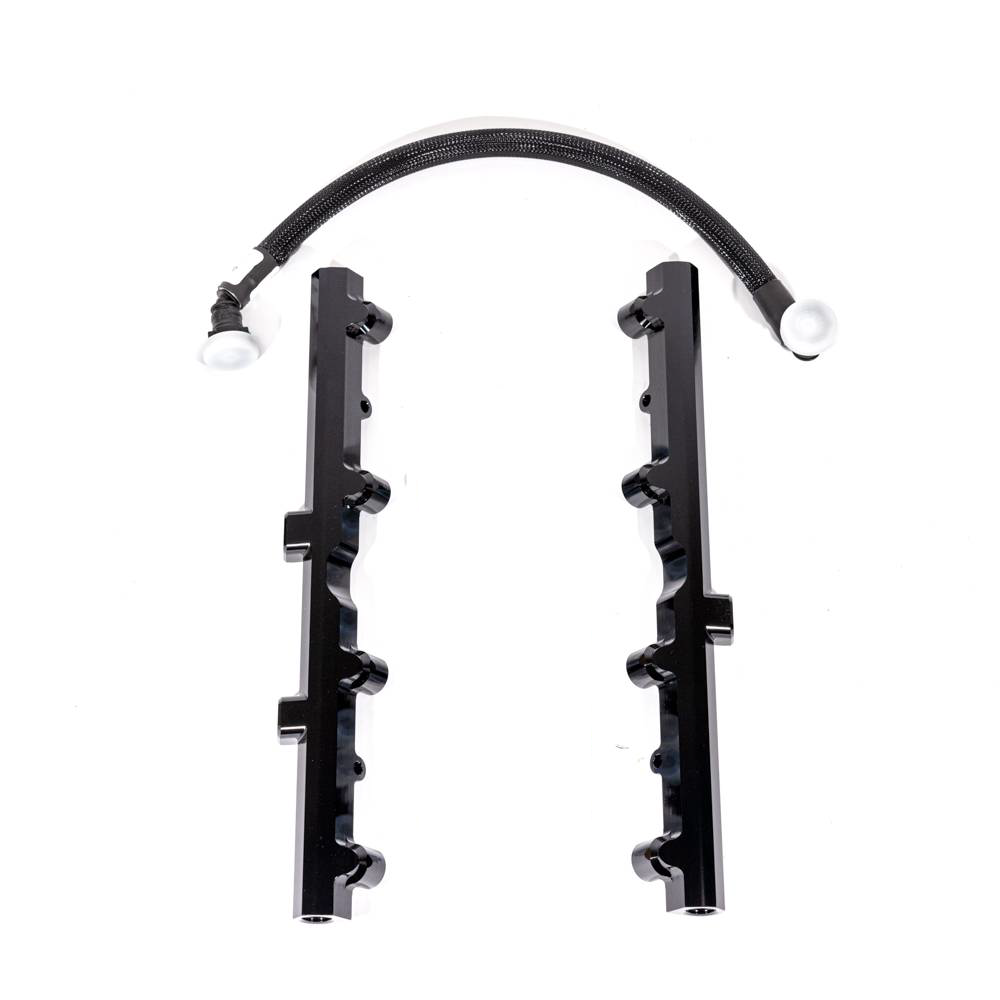

  • Billet Fuel Rails
  • Built-in Air-to-Water Intercooler System

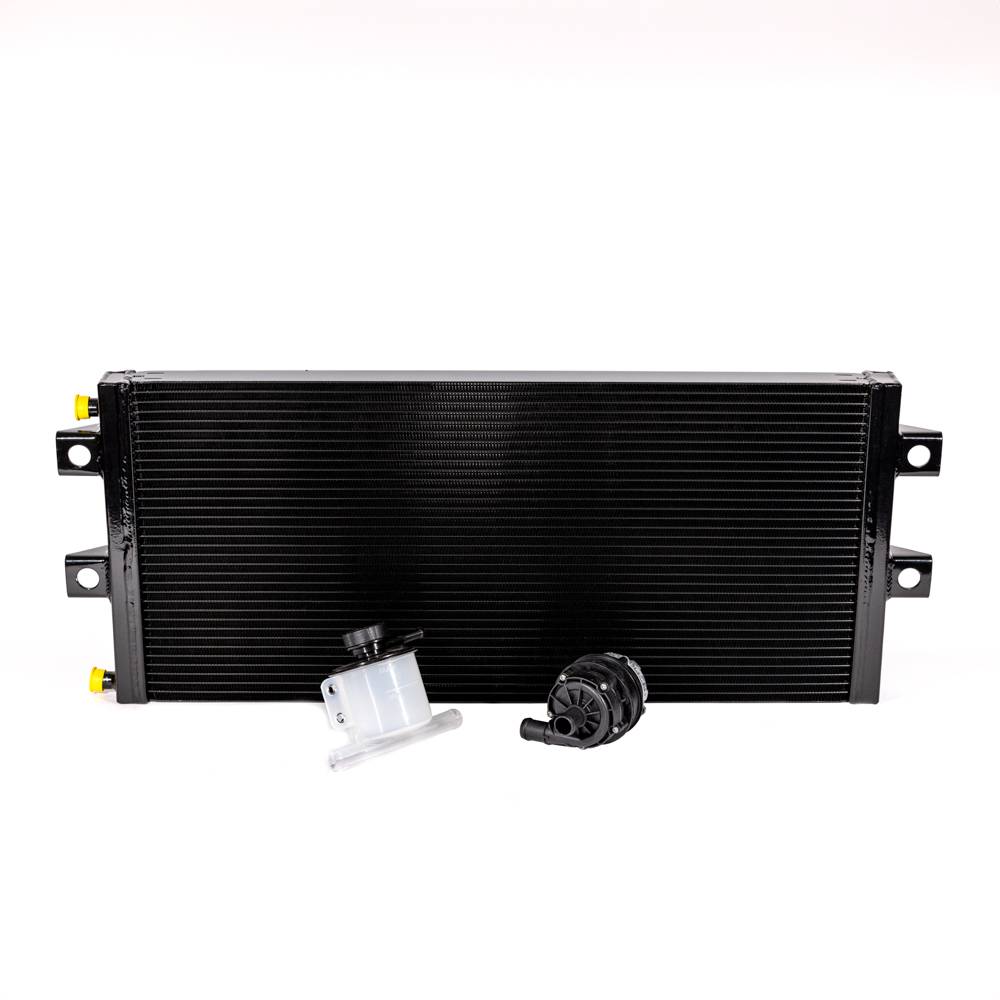

  • Oversized Dual-Pass Heat Exchanger + High-Flow Intercooler Pump

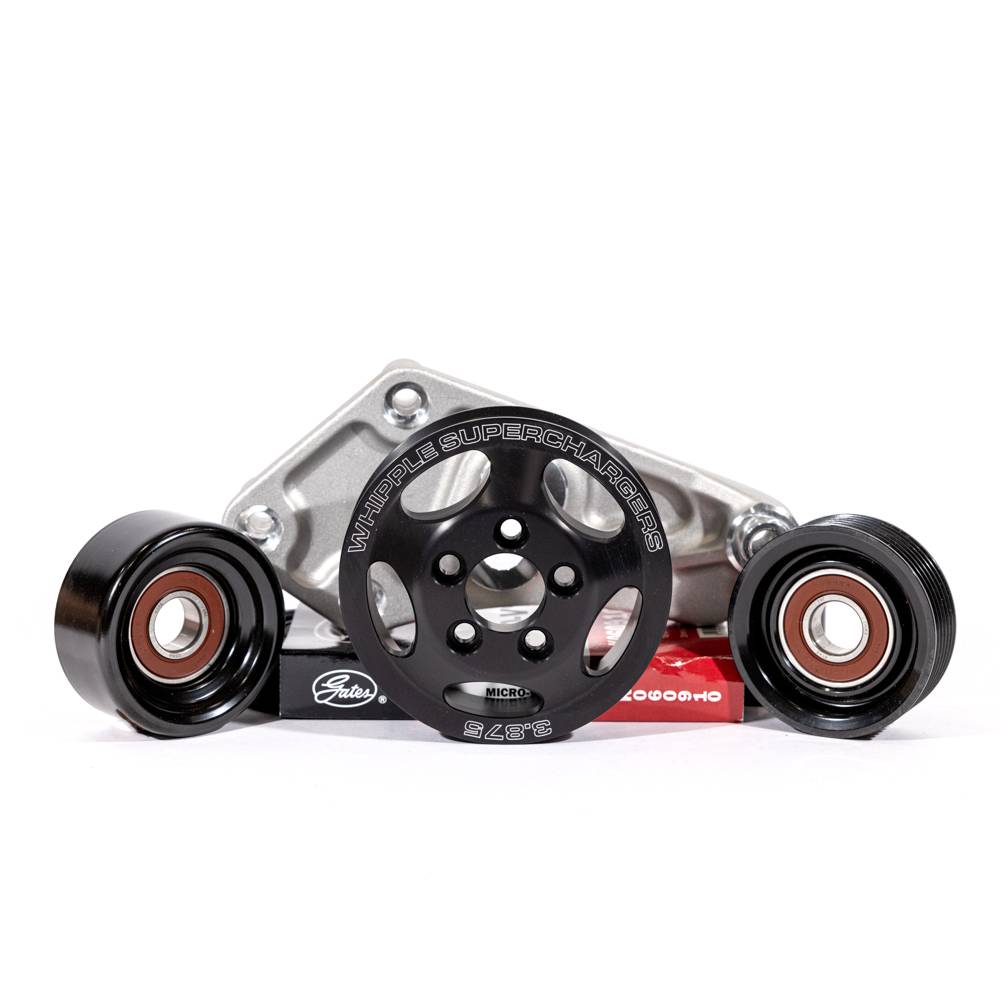

  • Plug-and-Play Wiring, Billet Idler System, and Mounting Hardware

Exclusive Features:

  • Competition-only system – Not CARB certified, not 50-state legal
  • Works with Ford’s dual alternator (Power Onboard) configuration
  • Patented dual-core intercoolers – each used twice for maximum efficiency

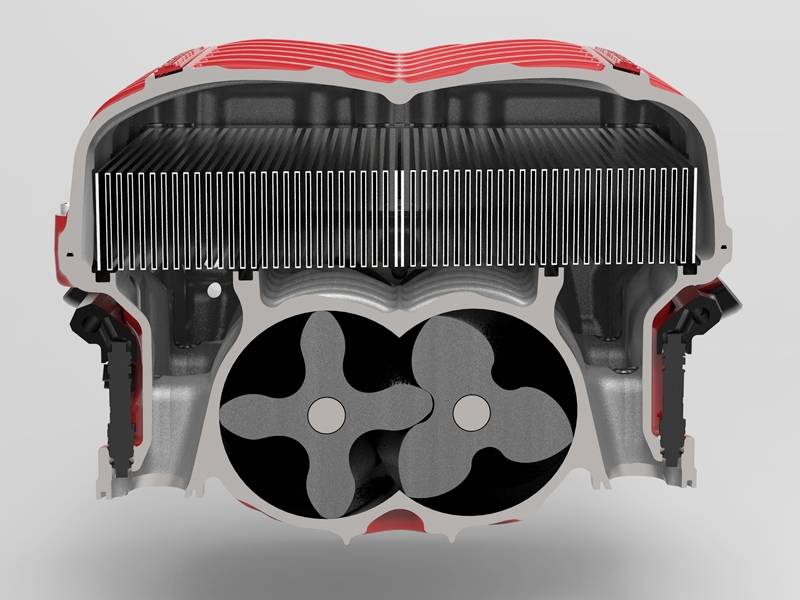

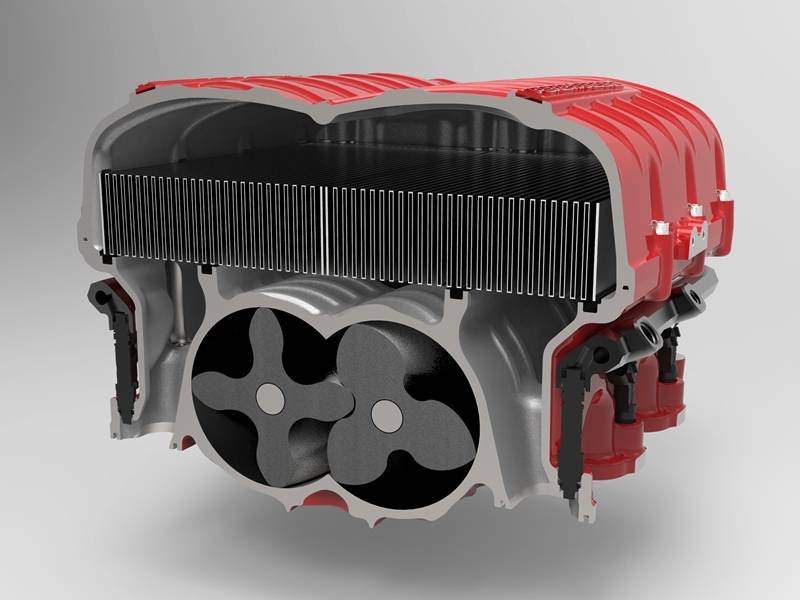

  • Whipple 3x4 rotor profile for increased RPM capacity and airflow

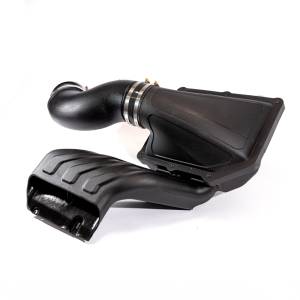

  • Oversized 150mm Crusher™ inlet for maximum volume
  • Fully sealed, inverted design for factory-like fit and finish
  • Instant boost with a flat torque curve across the RPM range
  • Quick-change pulleys and easy belt servicing
  • Available in wrinkle black, polished, Ford textured blue, or custom finishes

*Horsepower and torque figures are based on Whipple’s Stage 2 complete system with injectors and calibration. Actual output will vary depending on custom tuning, fuel, and supporting modifications.

Important Notice: This competition supercharger system does not include injectors, tuning device, or PCM calibration. It is intended for off-road and racing use only. Not legal for sale or use on pollution-controlled motor vehicles.


About Whipple Superchargers

Since 1987, Whipple Superchargers™ has led the industry in twin-screw supercharging technology. As the first to introduce positive displacement superchargers to fuel-injected platforms, we’ve built a reputation for bolt-on horsepower, OEM-caliber reliability, and industry-best thermal efficiency. All systems are proudly designed, tested, and built in the USA at our Fresno, California headquarters.
