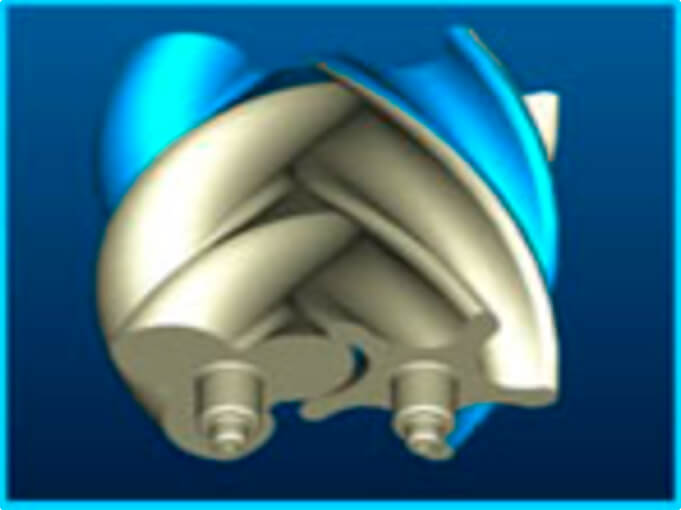

Twin Screw System

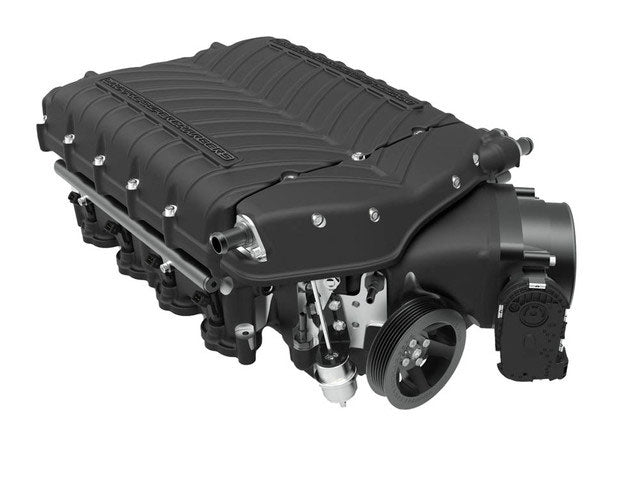

Whipple’s latest generation twin screw supercharger — designed, assembled and manufactured in the USA, with exclusive improvements that raise efficiency, lower operating temperature and extend service life.

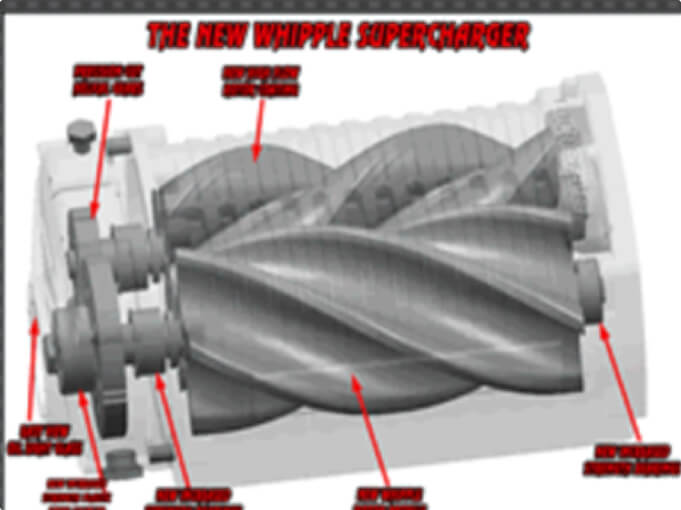

EXCLUSIVE IMPROVEMENTS

MADE IN USA

Designed, assembled and manufactured in the USA.

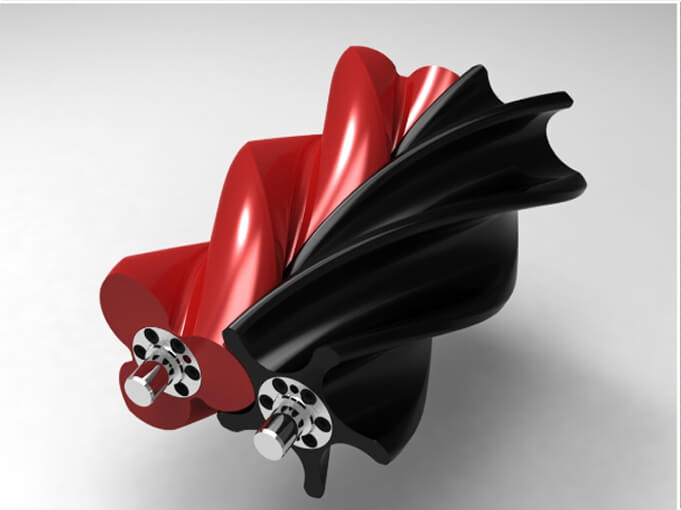

HIGH-FLOW ROTOR COATING

Enhanced efficiency and durability from a high-flow rotor coating.
MORE BEARING LUBRICATION

Increased bearing lubrication reduces operating temperatures.
SERVICEABLE DESIGN

Replaceable and upgradeable components instead of a sealed unit.
UPGRADED BEARINGS

Double angular front bearing with a sealed roller rear bearing.
OIL SIGHT GLASS

Check oil level at a glance, no disassembly required.
100,000-MILE OIL INTERVAL

Long service intervals on the current Whipple compressor.

Supercharger Specifications

Supercharger Specifications
Model	Displacement	Max Cont. RPM	Max Peak RPM	Max CFM	Max M³/HR	Max PSI	Peak VE	Peak AE	Blueprint
W100AX	1.6 L/rev	18,000	20,000	1120	1902	30	99	81	100AX
W140AX	2.3 L/rev	18,000	18,000	1430	2430	30	99	80	140AX
W140R	2.3 L/rev	18,000	18,000	1389	2360	30	95	77	140R
W175AX	2.9 L/rev	18,000	18,000	1720	2922	30	99	78	175AX
W200AX	3.3 L/rev	16,000	18,000	2140	3635	30	99	78	200AX
W200R	3.3 L/rev	16,000	18,000	2030	3449	30	94	76	200R
W245AX	4.0 L/rev	16,000	18,000	2518	4278	30	99	78	245AX
W305AX	5.0 L/rev	18,000	20,000	3462	5882	30	98	77	305AX
W305R	5.0 L/rev	18,000	20,000	3250	5522	30	93	75	305R
W510AX	8.3 L/rev	11,000	12,000	3462	5882	30	98	77	510AX
W510R	8.3 L/rev	11,000	12,000	3250	5522	30	93	75	510R

Why Twin Screw Wins

Why Twin Screw Wins
	Whipple Twin Screw	Centrifugal	Turbo	Roots
Response	Awesome idle-to-redline rpm power. No lag.	Poor low-speed response, similar to "turbo lag."	Poor low-speed response. Turbo lag.	Good low to mid-range power.
Driveability	Increased lugging ability in higher gears. Increased power throughout rpm range.	Must downshift to maintain boost level.	Must downshift to maintain boost level.	Increased lugging ability in higher gears.
Engine Torque Curve	Virtually flat curve; ideal characteristic.	Often worse than uncharged engine at low speeds.	Often worse than uncharged engine at low speeds.	Wide range; fall-off can occur at high speeds.
Heat Buildup	Low; intercoolers are usually not needed.	Low; intercoolers are usually not needed.	High; may need intercooler.	High; limits boost available.
Noise	Very low noise levels.	Typically very noisy.	Very low noise levels.	Typically very noisy.
Adiabatic Efficiency	70-85%	60-78%	60-75% Peak	30-65%
