2020-2024 Lincoln Aviator 3.0L Ecoboost Stage 1 (50-State Legal)
- Stage 1 gains: up to +60 HP and +80 lb-ft*
- Whipple Mega Cooler – 214% greater volume, 259% more frontal area vs. stock
- Approx. 70°F charge temp drop on dyno; 100°F+ during steady-state testing
- Includes high-flow replacement air filter and Whipple calibration (91+ octane)
- Refined shift schedule, higher RPM shift points, improved pedal mapping
- Convenience updates: auto start/stop off, gear indicator enabled in Drive
- Install time ~3.5 hours; minimal tools required
- 50-State Legal, CARB Certified
50-State Legal – CARB EO D-231-94
Description
2020–2024 LINCOLN AVIATOR 3.0L ECOBOOST STAGE 1 (50-STATE LEGAL)
Whipple brings its industry-leading upgrade technology to the 3.0L Lincoln Aviator with the 50-state legal Stage 1 kit. This package combines the massive Whipple Mega Cooler intercooler, a high-flow replacement air filter, and an all-new calibration to deliver stronger power, refined drivability, and consistent performance in all conditions.
The Whipple Mega Cooler provides 214% greater volume and 259% more projected frontal area than stock for class-leading cooling. Bar-and-plate construction with offset fin on both hot and cold sides dramatically reduces charge temperatures—showing ~70°F drops on the dyno and even larger reductions during steady-state testing. Colder, denser air improves spark advance and helps the engine make reliable, repeatable power pull after pull. Cast aluminum end tanks promote high flow with low pressure drop.

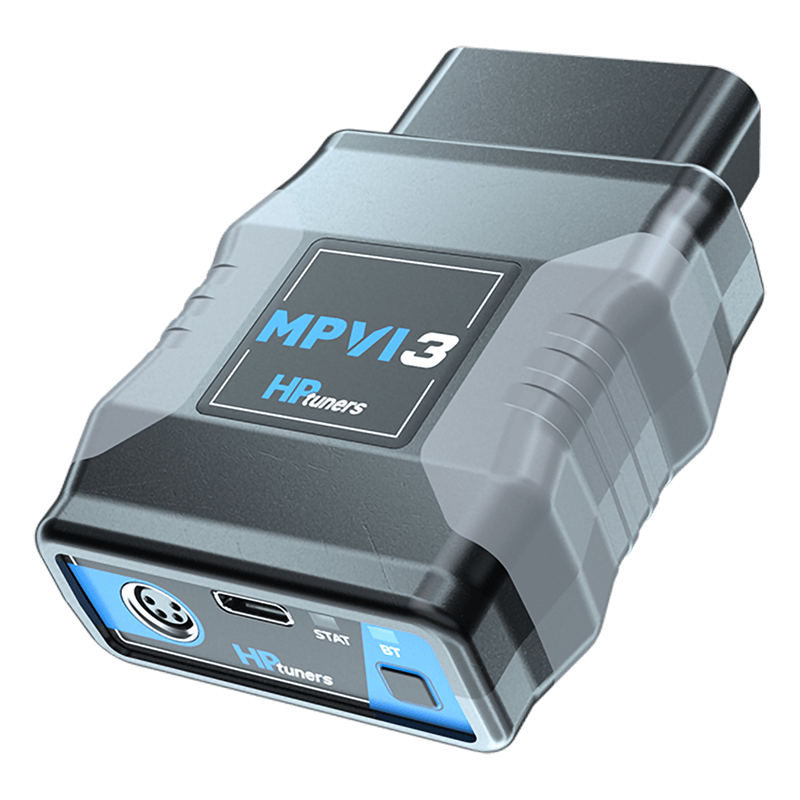

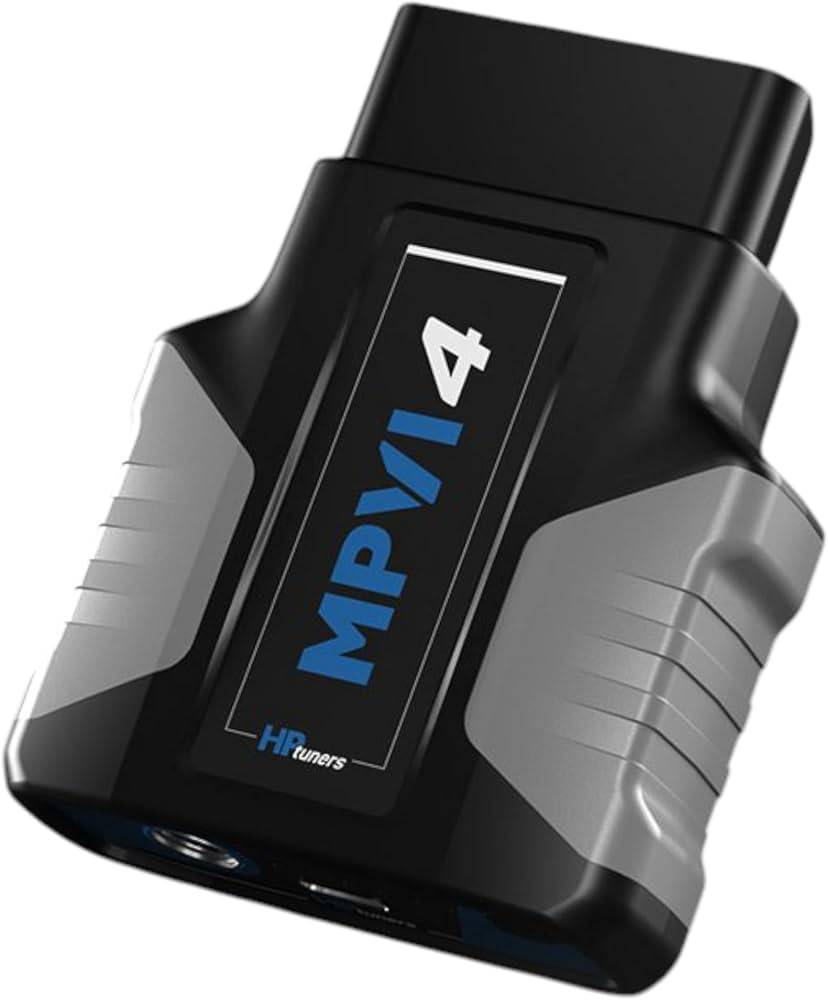

Developed by Whipple’s Ford calibration team for 91+ octane, the Stage 1 tune gains up to +60 HP and +80 lb-ft*. The calibration refines the shift schedule, raises RPM shift points, sharpens pedal mapping, disables auto start/stop, and enables the gear indicator in Drive. All factory drive modes remain intact. The Whipple flash tool simplifies updates and supports DTC read/erase, live data, and advanced logging.
Exclusive Features
- Dyno-proven improvements:
- Up to +60 HP / +80 lb-ft*
- Massive intercooler upgrade:
- 214% greater core volume vs. stock
- 259% more frontal area vs. stock
- ~70°F temp drop on dyno; 100°F+ steady-state
- Cast high-flow end tanks
- Durable bar-and-plate construction
- Offset fin for max efficiency (hot & cold sides)
- Calibration optimized for 91+ octane
- Updated shift schedule & higher RPM shift points
- Improved pedal mapping
- Auto start/stop disabled; gear indicator enabled in Drive
- Increased speed limiter
Installation time: ~3.5 hours
50-State Legal, CARB Certified (EO D-231-94)
*Aviator hybrid version is not compatible.
*Power ratings with 93 octane. Actual results may vary with fuel quality and conditions.
Details
- EB-8175
- EB-8175
- Whipple Superchargers
- New
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W18.0000” x H18.0000” x L30.0000”
- Free Ground Shipping
